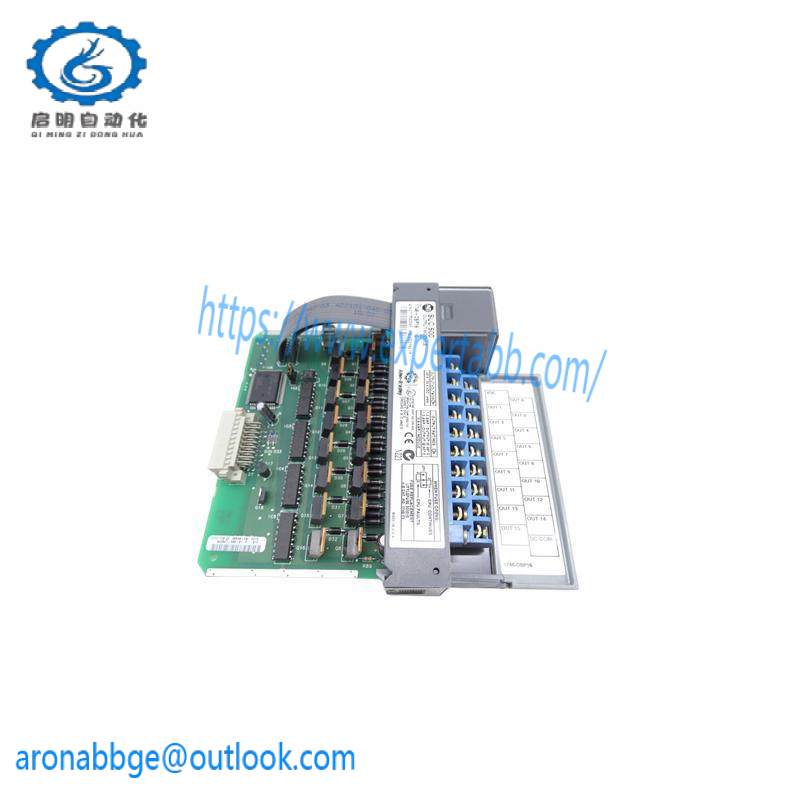

AB 1746-OBP16: High-Performance Digital DC Output Module for Industrial Automation

Number of Channels:16

Input Voltage (DC):24V

Output Voltage Range (DC):10-50V

On-State Voltage Drop:1.2V

Off-State Leakage Current:1mA

Load Capacity:1mA

Continuous Current Per Output (A):0.25A at 60°C

Continuous Current Per Module (A):4A at 60°C

Isolation (DC):Communication circuits: 500VDC, Backplane: 1500VAC

Processor Type:SLC 500

Enclosure Type:Open Type

Mounting Method:Chassis

Temperature Range:-40°C to 70°C

Environmental Conditions:5% to 95% non-condensing humidity

    Engineered for precision and reliability, the AB 1746-OBP16 Digital DC Output Module ensures smooth operation in demanding industrial environments. With 16 programmable channels, it offers flexibility for complex control applications.

    Featuring a high voltage output range from 10 to 50 volts DC, this module is ideal for controlling a variety of electrical components. Its low on-state voltage drop ensures efficient power delivery, reducing energy consumption and enhancing system performance.

    The robust design includes isolation features for communication circuits and backplane, ensuring operational safety and preventing interference with other system components. This makes it suitable for a wide range of industrial automation setups.

    The open-type enclosure facilitates easy installation and maintenance, while the chassis mounting option allows for secure placement within any industrial automation setup. The temperature rating ensures reliable operation across various working conditions, guaranteeing continuous performance in extreme environments.

    Built with Allen-Bradley’s renowned quality standards, the AB 1746-OBP16 Digital DC Output Module is a testament to the brand’s commitment to delivering high-performance, durable solutions for industrial automation. It is a versatile choice for manufacturers seeking to enhance efficiency and accuracy in their production lines.
