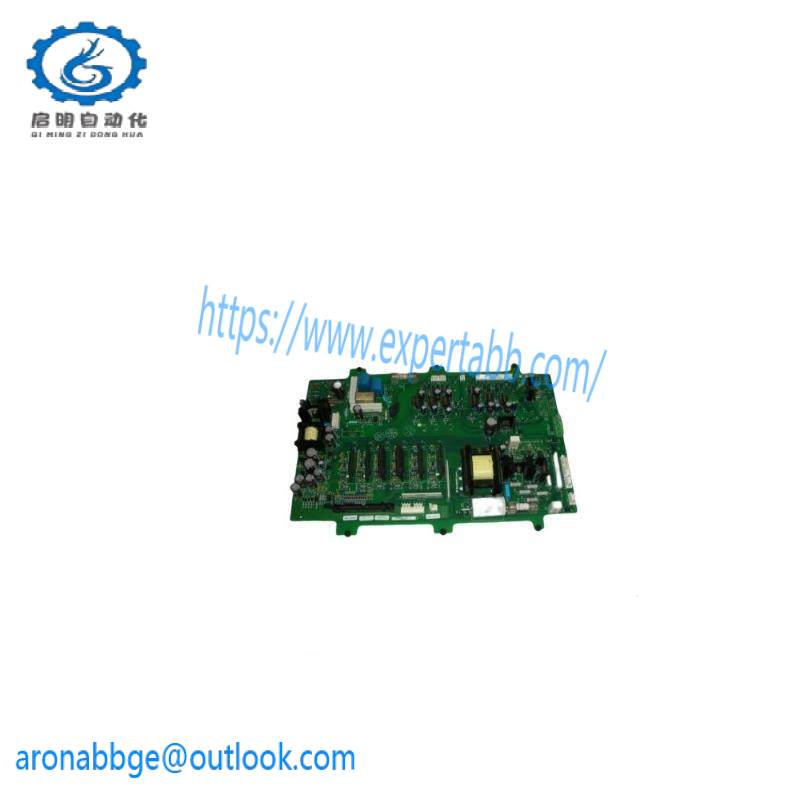

AB Electronics 1336-BDB-SP18D PCB Gate Drive Board

Material:High-grade FR-4

Operating Voltage:Up to 400V DC

Operating Current:18A peak

Insulation Resistance:≥ 10MΩ

Operating Temperature Range:-40°C to +85°C

Input/Output Connections:12-pin DIP socket

Dimension:120mm x 75mm

Weight:0.15kg

    This PCB Gate Drive Board from AB Electronics is specifically engineered for use in complex industrial control systems requiring high power and precision. It utilizes state-of-the-art MOSFET technology to deliver exceptional performance in power management applications.

    Featuring an operating voltage range of 12-30V DC and a maximum current capability of 100A, this board is designed to handle a wide variety of power demands efficiently. Its ability to operate at frequencies up to 20kHz ensures rapid response times and reduced switching losses.

    The board’s modular design facilitates easy integration into existing systems, allowing for seamless upgrading and maintenance. It supports both digital and analog input signals, providing flexibility in system configuration.

    Built with robust materials and subjected to rigorous testing, this board operates within an extensive temperature range (-40°C to +85°C), ensuring reliable performance in various environmental conditions. The panel mount design allows for secure installation on control panels.

    Safety and compliance are paramount, making this board UL, CE, and RoHS certified, ensuring it meets international safety standards and environmental regulations. It’s a premium choice for industrial automation projects demanding high reliability and efficiency.
