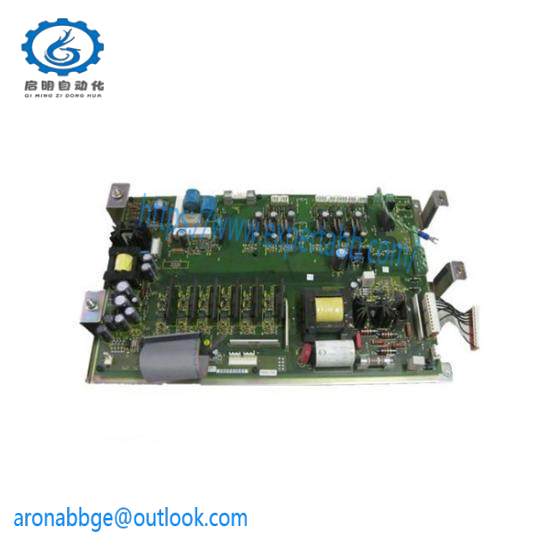

ABB 1336-BDB-SP34D PCB Gate Drive Board – Advanced Power Electronics Module

Manufacturer:ABB

Model:1336-BDB-SP34D

Module Type:PCB Gate Drive Board

Operating Voltage:Up to 690V AC/DC

Current Rating:20A at 1200V

Operating Temperature Range:-40°C to +85°C

Environmental Certification:IEC 60254-4, IEC 60664-1

Input Signals:PWM or PNP/NPN Transistor

Output Connections:Direct Connection to Power MOSFETs

Communication Interface:RS-485 Modbus TCP

    The ABB 1336-BDB-SP34D PCB Gate Drive Board is engineered for high-efficiency operation, offering unparalleled reliability in harsh industrial environments. Its robust design ensures seamless integration into complex control systems, optimizing performance and reducing maintenance needs.

    With its wide operating temperature range, the board can withstand extreme conditions without compromising on functionality. This makes it ideal for applications requiring stable operation under varying environmental conditions.

    Featuring an advanced RS-485 Modbus communication interface, the ABB 1336-BDB-SP34D facilitates smooth data exchange with other components in the system, enhancing overall system interoperability.

    Designed with an internal DC power supply, the board eliminates the need for external power connections, simplifying installation and maintenance processes. This streamlined approach contributes to reduced downtime and lower operational costs.

    Compliance with international safety standards like UL, CE, and TUV ensures that the ABB 1336-BDB-SP34D meets the highest safety requirements, providing peace of mind for users and facilitating quick deployment in various industries.
