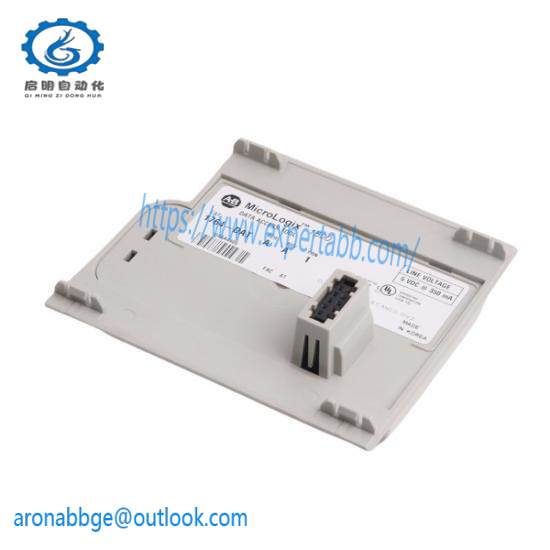

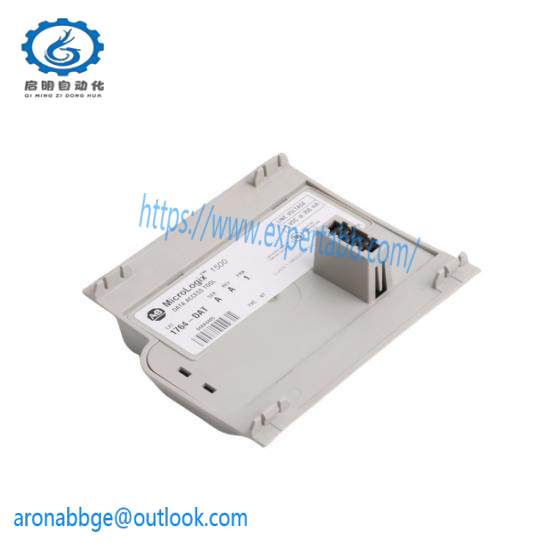

ABB 1764-DAT, Advanced Control Module, Precision Automation Solutions

Power Supply Voltage:DC 24V

Communication Protocol:Modbus RTU

Operating Temperature Range:-20°C to +60°C

Input Channels:4

Output Channels:2

Memory Capacity:128 KB

    The 1764-DAT module is a versatile component that seamlessly integrates with a wide range of industrial control systems, providing accurate and efficient data acquisition and transmission capabilities. Its robust design ensures reliable operation under various environmental conditions.

    Featuring 16 channels for multiple analog inputs, this module supports both current (4 to 20 mA) and voltage (0 to 10 V) signals, making it compatible with diverse industrial sensors and measurement devices. The high sampling rate of up to 1 kHz allows for real-time monitoring and control.

    Equipped with Modbus RTU and DeviceNet communication protocols, the 1764-DAT module facilitates seamless data exchange with other industrial devices and software systems, enhancing overall system integration and efficiency.

    Operating within a temperature range of -20°C to +60°C, the module is designed to withstand harsh industrial environments. It is powered by a wide DC 12V to 24V supply, ensuring stable performance regardless of the power source.

    Compact and lightweight at just 200g and measuring 52 x 130 x 95 mm, the 1764-DAT module is easy to install and integrate into existing systems without occupying much space. This makes it an ideal choice for both new installations and upgrades.
