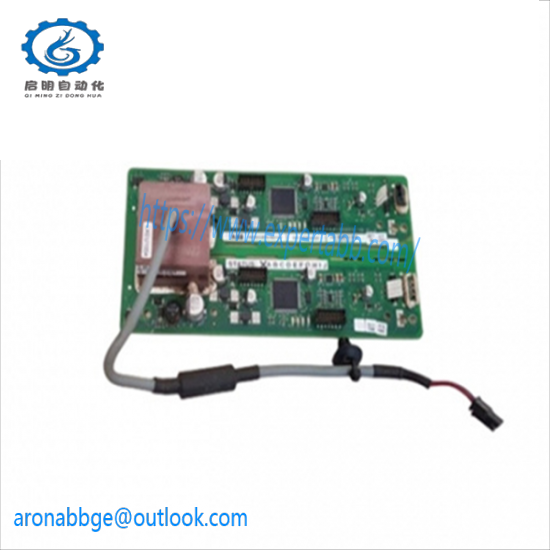

3BHE028761R1002 – ABB Module

Operating Voltage:DC 24V

Current Rating:20A

Switching Frequency:Up to 10kHz

Load Capacitance Compatibility:0.5uF to 10uF

Package Type:Surface Mount Technology (SMT)

Operating Temperature Range:-40°C to +85°C

Insulation Resistance:≥10MΩ @ 500VDC

Reliability:Mean Time Between Failures (MTBF) > 1 million hours

    The ABB 3BHE028761R1002 Gate Driver is engineered to deliver unparalleled performance in industrial automation systems. Its robust design ensures seamless integration into complex control circuits, enabling smooth power management and enhancing operational efficiency.

    Featuring advanced surface mount technology (SMT), this gate driver is compact yet powerful, boasting a current rating of 20A and a switching frequency up to 10kHz, making it suitable for high-speed applications. Its compatibility with load capacitances from 0.5uF to 10uF ensures versatility across different circuit requirements.

    With an operating temperature range from -40°C to +85°C, the ABB 3BHE028761R1002 is built to withstand extreme environmental conditions, ensuring reliable operation in diverse industrial environments. Its insulation resistance of ≥10MΩ @ 500VDC guarantees a high level of electrical safety and isolation.

    Backed by a mean time between failures (MTBF) of over 1 million hours, this gate driver promises exceptional durability and reduced maintenance costs, contributing to a lower total cost of ownership for industrial facilities. The ABB 3BHE028761R1002 is a testament to our commitment to delivering high-quality, reliable solutions for industrial control systems.

    Designed with ease of integration and user-friendly interfaces, the ABB 3BHE028761R1002 Gate Driver simplifies the process of upgrading or integrating into existing control systems. Its compatibility with a wide range of industrial standards and protocols ensures seamless operation within diverse ecosystems.
