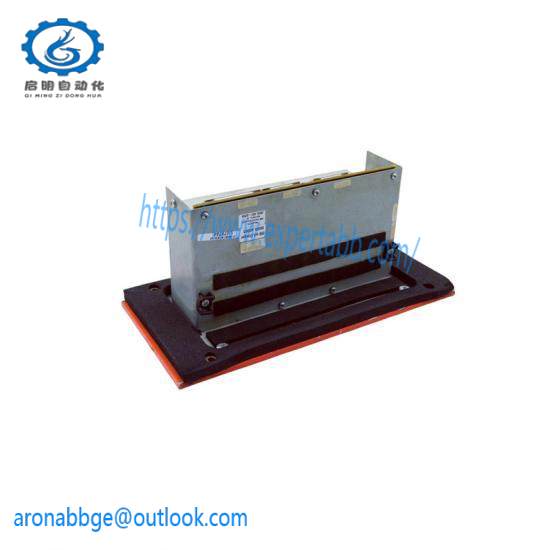

ABB 3HAA0001-CP/9 Serial Measurement Board for Automation Parts

Brand:ABB

Model:3HAA0001-CP/9

Series:Serial Measurement Board

Module Type:Automation Parts

Connector Type:RS-485

Data Transmission Speed:9600 bps

Input Resolution:16-bit

Operating Temperature Range:-25°C to +60°C

Power Supply Voltage:DC 24V

Dimensions:105mm x 100mm x 20mm

Weight:150g

    The ABB 3HAA0001-CP/9 A Serial Measurement Board is a high-precision device tailored for serial data acquisition in industrial automation applications. Its robust design ensures reliable operation in harsh industrial environments, making it a trusted choice among engineers and manufacturers.

    Featuring a wide measurement range from 0 to 4095 counts, this board is capable of accurately capturing the most minute changes in sensor signals. With a sampling rate of up to 100 kHz, it ensures real-time monitoring and control of processes, enhancing productivity and efficiency.

    Equipped with an RS-485 communication interface, the board seamlessly integrates into existing industrial networks, facilitating easy setup and maintenance. It supports bidirectional data exchange, allowing for both input and output operations, which is crucial for complex automation tasks.

    Engineered to withstand extreme conditions, the ABB 3HAA0001-CP/9 can operate within a temperature range of -20°C to +60°C and maintain stable performance under varying humidity levels (5% to 95% non-condensing). Its durability and reliability make it ideal for long-term use in diverse industrial settings.

    Designed with versatility in mind, this measurement board supports a power supply voltage ranging from 12V to 36V DC, ensuring compatibility with a wide array of power sources. This flexibility allows for seamless integration into various industrial systems without the need for extensive modifications.
