3BSE008546R1 – ABB Module

Specification 1:Analog Output Channels

Value 1:4

Specification 2:Signal Type

Value 2:1-channel or 4-channel

Specification 3:Output Range

Value 3:0V to 10V or 0mA to 20mA

Specification 4:Resolution

Value 4:0.1% of full scale

Specification 5:Power Supply

Value 5:10VDC ± 10%

Specification 6:Communication Interface

Value 6:RS485

Specification 7:Operating Temperature

Value 7:-25°C to +60°C

Specification 8:Storage Temperature

Value 8:-40°C to +85°C

Specification 9:Humidity

Value 9:5% to 95% non-condensing

Specification 10:Dimensions

Value 10:102 x 102 x 126 mm

Specification 11:Weight

Value 11:0.15 kg

Specification 12:Certification

Value 12:CE, UL, CSA

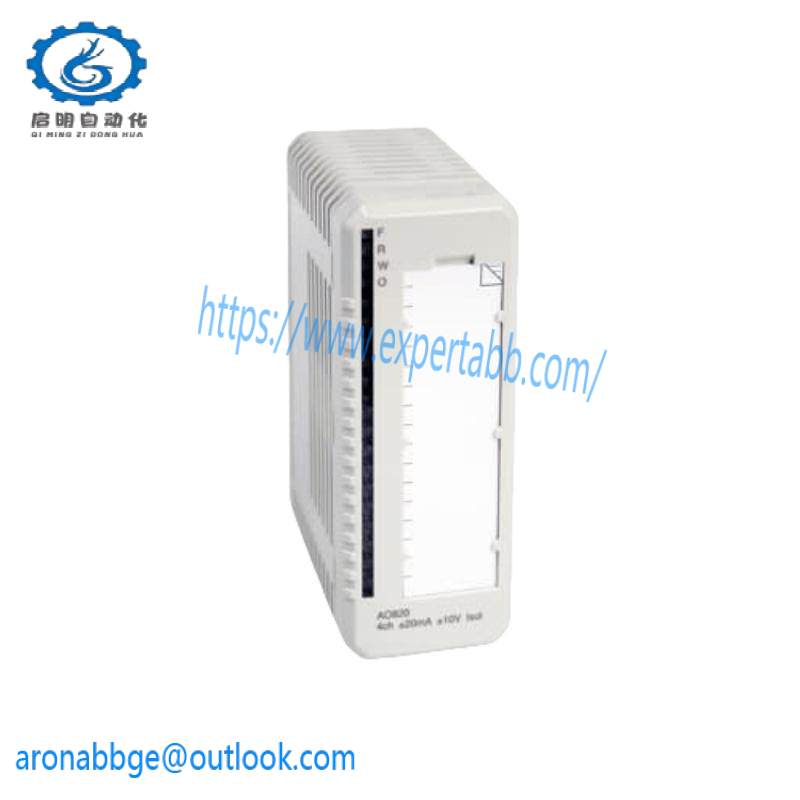

    The ABB AO820 3BSE008546R1 Analog Output Module boasts a compact design and high accuracy, making it an ideal choice for applications where precision is critical. This module ensures stable and reliable performance across a wide range of environmental conditions.

    Featuring a terminal block connection, this module simplifies wiring and enhances the overall efficiency of the system. It is compatible with various control systems and can easily integrate into existing automation networks.

    With its ability to generate precise analog signals, the ABB AO820 module is particularly suited for tasks such as controlling motors, valves, and other equipment that require smooth, adjustable output levels.

    Engineered with robust materials and advanced technology, this module is built to withstand harsh industrial environments while maintaining its performance over time. Its IP20 enclosure rating provides protection against dust and splashes of water, ensuring longevity and reliability.

    For optimal performance, we recommend regular maintenance and updates according to the manufacturer’s guidelines. Our technical support team is available to assist with any installation or operation questions, ensuring a seamless integration into your automation project.
