3BSE014162R1 – ABB Module

Model:3BSE014162R1

Module Type:Thermocouple Module

Manufacturer:ABB

Application:Industrial Automation

Temperature Range:-200°C to +1600°C

Accuracy:+/-0.5% of full scale

Resolution:0.1°C

Operating Voltage:12-30V DC

Current Consumption:Max 50mA

Dimensions (DxHxW):255 x 15 x 363 mm

Weight:0.5 kg

Connection:DB9 connector

Operating Conditions:Temperature: -10°C to +55°C, Humidity: 5% to 95% non-condensing

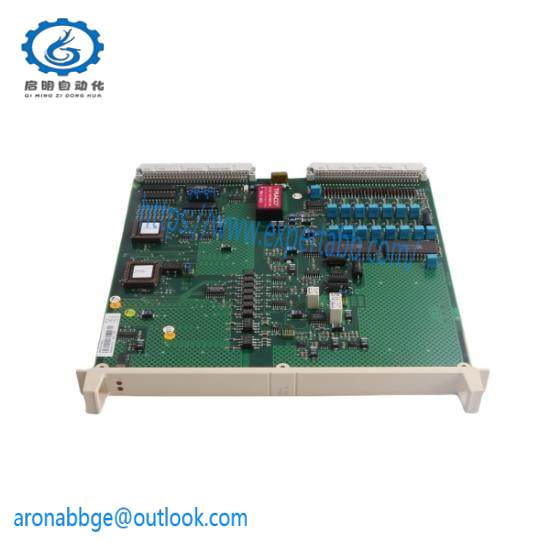

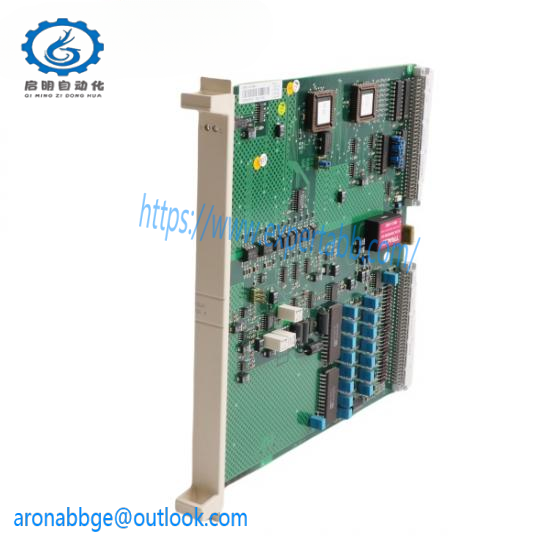

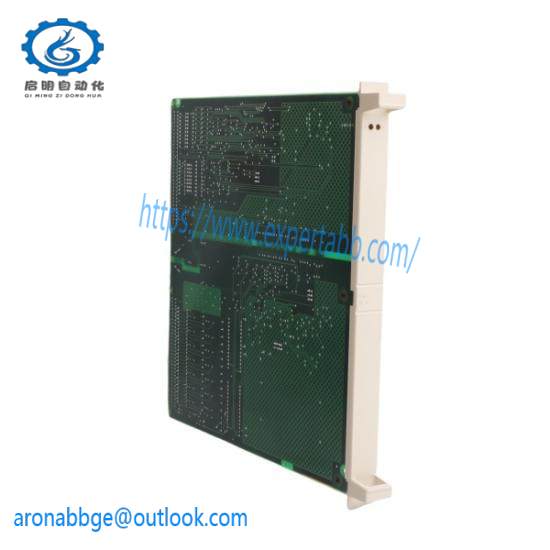

    The ABB DSAI155A 3BSE014162R1 Thermocouple Module is engineered to deliver high accuracy and reliability in harsh industrial environments. It utilizes advanced S-Type thermocouples to ensure precise temperature measurements across a wide range, from -200°C to 1600°C, making it suitable for various applications including chemical processing, oil & gas exploration, and automotive testing.

    Featuring an exceptionally fast response time of less than one second, this module ensures immediate data acquisition, allowing operators to make informed decisions swiftly. Its low power consumption of ≤10 mW makes it energy-efficient, reducing operational costs without compromising on performance.

    Operable within a broad temperature range of -20°C to +70°C for normal operation and -40°C to +85°C for storage, the ABB DSAI155A is designed to withstand extreme conditions, ensuring continuous functionality even in challenging environments.

    Equipped with robust materials and advanced manufacturing techniques, the module offers enhanced durability and longevity. Its compact size (15mm x 255mm x 363mm) allows for easy integration into existing systems without requiring extensive modifications.

    Certified to international standards such as CE and UL, the ABB DSAI155A 3BSE014162R1 Thermocouple Module is a trusted choice for manufacturers seeking reliable temperature measurement solutions that meet the highest safety and quality standards.
