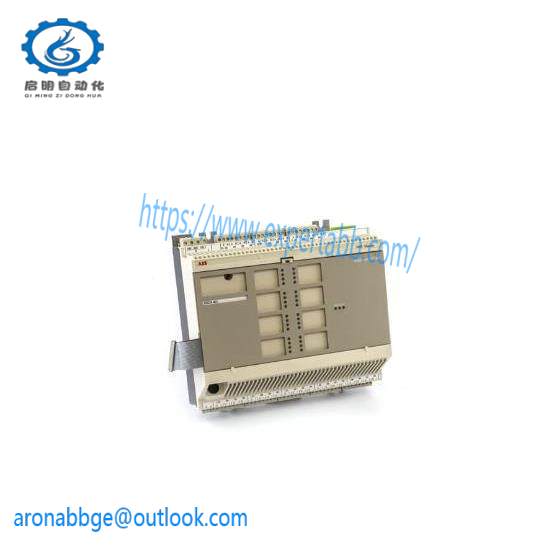

ABB DSDX451 5716075-K Digital Input/Output – High Performance Control Module

Module Type:Digital Input/Output

Model Number:DSDX451 5716075-K

Manufacturer:ABB

Connector Type:IP67 rated

Operating Temperature Range:-25°C to +70°C

Communication Protocol Compatibility:Profinet, EtherCAT, DeviceNet

Input/Output Channels:8 Input, 8 Output

Power Supply Voltage:24V DC

Current Consumption:Max 20mA per channel

Relay Contact Rating:5A @ 250V AC / 10A @ 125V AC

Dimensions (WxHxD):95mm x 84mm x 100mm

Weight:0.4kg

    The ABB DSDX451 5716075-K Digital Input/Output Module is a robust solution for industrial automation, offering precise control over multiple inputs and outputs. Its compact design ensures minimal footprint, making it ideal for space-constrained environments.

    Featuring advanced signal processing capabilities, this module provides accurate data acquisition and fast response times, crucial for real-time monitoring and control applications. Its compatibility with Profinet ensures seamless integration with a wide range of control systems.

    Designed with durability in mind, the module withstands harsh industrial conditions, from extreme temperatures to dust and moisture, ensuring reliable operation in diverse manufacturing settings. The IP20 enclosure offers basic protection against accidental contact and ingress of dust.

    Installation is straightforward, thanks to its panel-mount style, which allows easy connection to existing circuits. The DSDX451 5716075-K supports up to 5A per channel on outputs, making it suitable for demanding applications requiring high current capability.

    For maintenance and diagnostics, the module includes built-in status LEDs for quick visual checks and supports advanced communication protocols for enhanced troubleshooting and monitoring functionalities.
