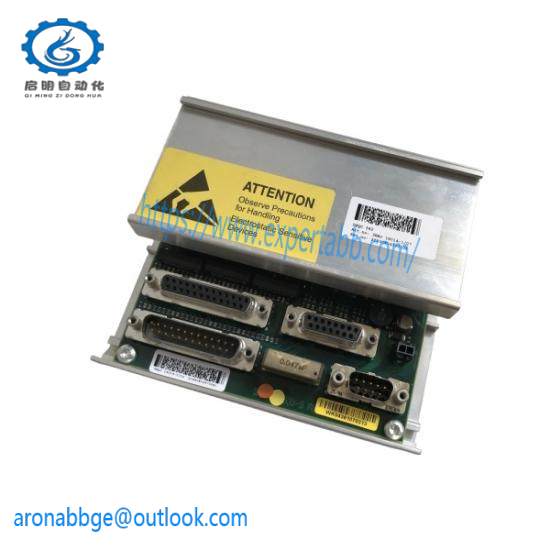

ABB DSQC562 3HAC16014106 | 3HAC16013104 | Measurement Board

Operating System Compatibility:ABB DeviceNet compatible

Data Acquisition Channels:16 Analog Input and 16 Digital Input/Output

Sampling Rate:Up to 100 ksamples/sec

Analog Resolution:12-bit

Power Supply Voltage:10 to 30 VDC

Environmental Conditions:Temperature range: -25°C to +60°C

Dimensions:100mm x 51.8mm x 30.5mm

Weight:Approx. 30g

    Integrating state-of-the-art technology, the ABB DSQC562 Measurement Board is a cornerstone of modern industrial control systems, providing unparalleled precision in data acquisition.

    Featuring an innovative design that supports both analog and digital signal processing, this board ensures seamless integration into complex industrial setups, enhancing operational efficiency.

    With a robust construction and high environmental tolerance, it can withstand challenging industrial conditions without compromising performance, ensuring reliable operation over extended periods.

    Equipped with advanced communication interfaces like DeviceNet and CANopen, the DSQC562 facilitates easy connectivity with a wide range of devices, simplifying system integration and maintenance.

    Engineered for minimal power consumption, the Measurement Board optimizes energy use, reducing operational costs without sacrificing functionality or performance.

    Backed by ABB’s commitment to quality and innovation, the DSQC562 Measurement Board is the preferred choice for engineers and manufacturers seeking precision, reliability, and efficiency in their automation solutions.
