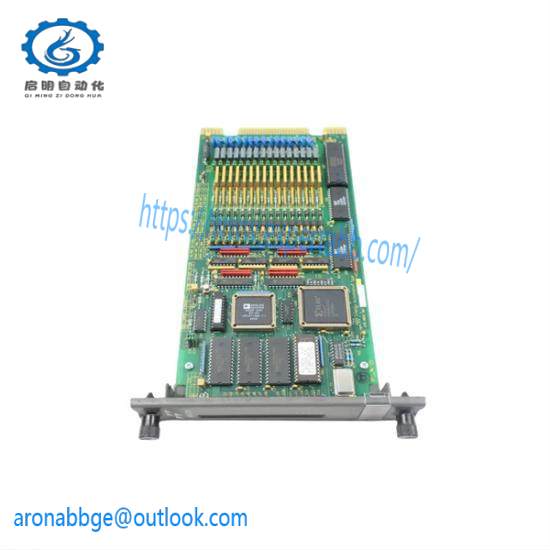

ABB IMSED01: 16-Channel Digital Input Module – Advanced Industrial Automation Solution

Product Type:Digital Input Module

Model Number:IMSED01

Module Quantity:16 Channels

Input Voltage Range:12-24V DC

Operating Temperature:-20°C to +70°C

Communication Protocol:Modbus/TCP

Power Consumption:Less than 50mA

Dimension (WxHxD):120mm x 75mm x 22mm

Weight:Approx. 0.2kg

    The ABB IMSED01 is engineered for seamless integration into complex industrial control systems, ensuring reliable signal acquisition and processing. It boasts a robust design capable of withstanding harsh industrial conditions.

    Featuring 16 digital input channels, this module supports a wide range of signals, making it suitable for various applications in manufacturing, process control, and automation industries. Each channel can handle up to 60mA, providing flexibility in connecting different types of sensors or switches.

    With an operational temperature range from -25°C to +60°C and a non-condensing humidity level up to 95%, the ABB IMSED01 ensures stable performance in diverse environmental conditions. This makes it ideal for use in factories, warehouses, and outdoor settings where temperature fluctuations are common.

    Equipped with Modbus RTU communication interface, the module offers easy integration with other industrial devices and control systems. This feature simplifies setup and configuration processes, enabling quick deployment in new projects or system expansions.

    Designed for panel-mounted installation, the ABB IMSED01 minimizes space requirements and facilitates easy access for maintenance and troubleshooting. Its compact size and straightforward design make it a preferred choice for engineers looking to optimize their control system layouts without compromising on functionality.
