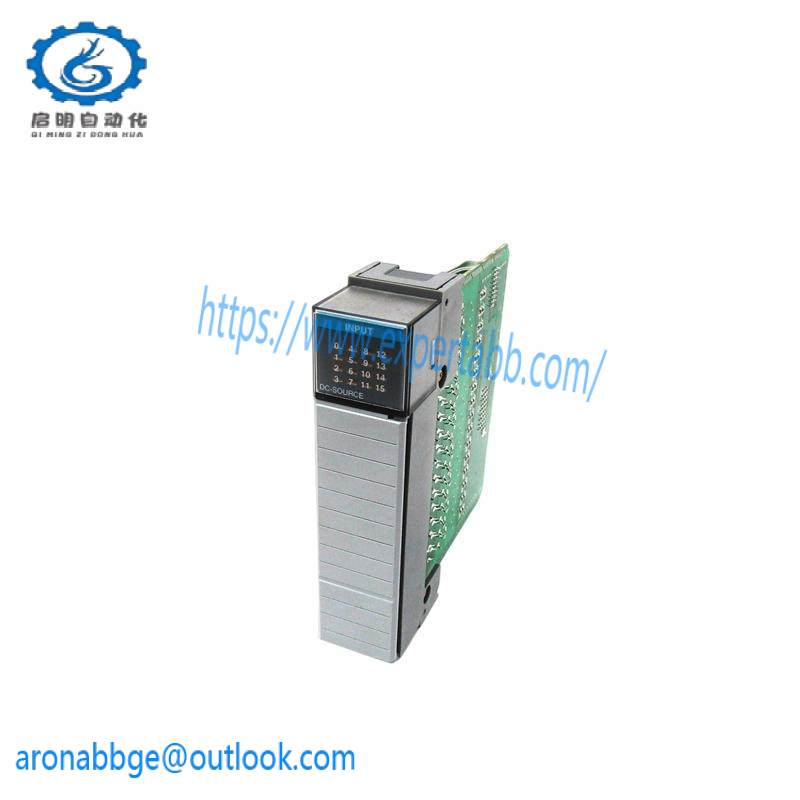

Allen-Bradley 1746-IV16 DC Input Module

Brand:Allen-Bradley (A-B)

Model:1746-IV16

Module Type:DC Input Module

Number of Channels:16

Input Voltage Range:10-30 VDC

Off-State Voltage:3 VDC

Nominal Current:8 mA at 24 VDC

Off-State Current:1 mA

Isolation Voltage:500 VDC

Operating Temperature Range:0°C to 60°C

Humidity Range:5% to 95% Non-Condensing

    The Allen-Bradley 1746-IV16 DC Input Module is designed to deliver reliable and accurate performance in industrial environments. With its 16-channel DC input capability, this module is perfect for applications that require precise monitoring and control of digital inputs. It supports a wide voltage range of 10 to 30 VDC, ensuring compatibility with various industrial devices and systems. The off-state voltage threshold of 3 VDC ensures minimal interference from stray voltages, enhancing system reliability. Each channel can handle a nominal current of 8 mA at 24 VDC, providing robust signal handling. The module also boasts impressive isolation capabilities, with communication circuits rated at 500 VDC and backplane isolation at 1500 VAC, ensuring electrical safety and stability. Designed to withstand harsh industrial conditions, the module operates within a temperature range of 0 to 60°C and maintains operational integrity under relative humidity levels of 5 to 95%. Its shock resistance of 30 G ensures durability even in demanding environments.
