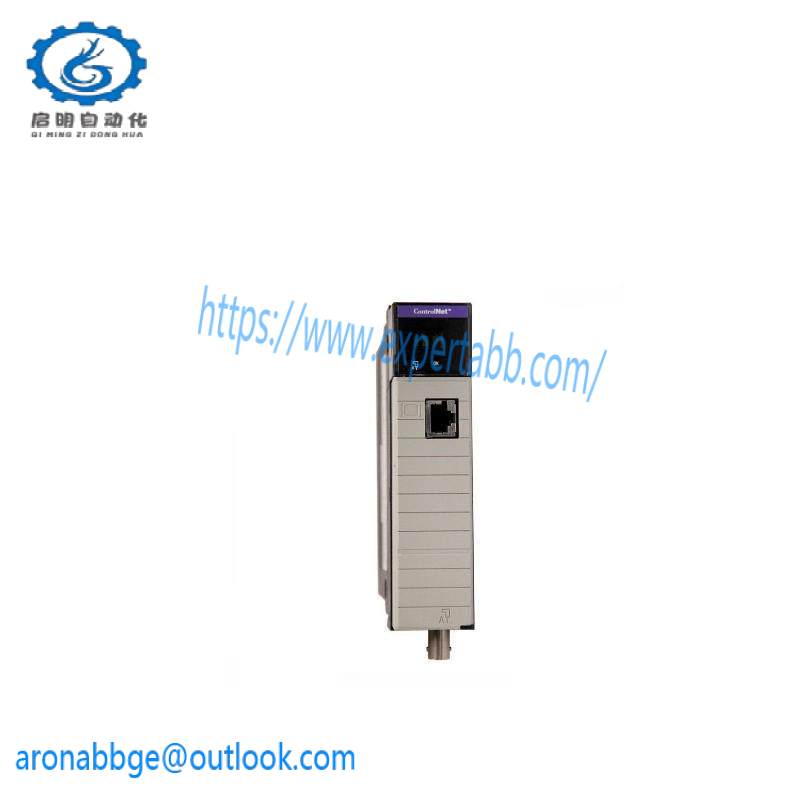

Allen Bradley AB 1756-CNB/D ControlLogix Bridge Module, Advanced Networking Solutions

Model Type:ControlLogix

Model Number:1756-CNBD

Manufacturer:Allen Bradley

Communication Protocol:DeviceNet

Number of Channels:Redundant

Isolation Level:30 V (Continuous)

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80-2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 1890 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000-2700 MHz

Conducted EMI:10 VRMS with 1 KHz sine-wave 80% AM from 150 KHz-80 MHz

    The Allen Bradley 1756-CNBD ControlLogix Bridge Module is designed for advanced networking in industrial automation environments. It seamlessly connects ControlLogix systems with DeviceNet devices, enabling enhanced data exchange and system integration.

    This module boasts a redundant design with two channels, ensuring reliable operation even under varying conditions. Its high current rating of 970 mA at 5.1 VDC and 1.7 mA at 24 VDC supports efficient power delivery for diverse applications.

    With an open type enclosure, the module ensures robust protection against environmental influences while maintaining high performance standards. The integrated RFI suppression technology ensures minimal interference, guaranteeing stable communication over the entire frequency spectrum.

    Ideal for applications requiring high-speed data transfer and enhanced security, the 1756-CNBD module is equipped with a 30 V continuous isolation level, safeguarding against electrical hazards and maintaining operational integrity.

    Easy to integrate into existing ControlLogix systems, this module simplifies network expansion and system upgrades. Its compatibility with various industrial protocols facilitates seamless integration with a wide range of devices, optimizing overall system performance.
