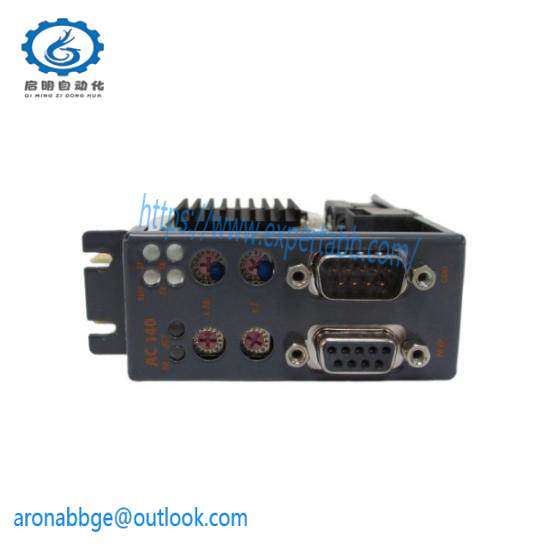

B&R 8AC122.60-3 Resolver Interface, High-Speed Data Acquisition

Operating Frequency:10 kHz

Resolution:32 bits

Output Signal Type:Digital

Accuracy:+/- 0.1 degrees

Temperature Range:-20°C to +70°C

Connection Type:4-wire resolver

Power Supply:DC 5V to 24V

Data Transmission Rate:1 Mbit/s

Dimensions (WxHxD):125mm x 84mm x 63mm

Weight:0.2 kg

    Engineered for precision and reliability, the B&R 8AC122.60-3 Resolver Interface ensures accurate angular position measurements critical for the operation of various industrial machinery. With its high operating frequency of 10 kHz, this interface provides swift data transmission, enhancing system responsiveness.

    This interface is equipped with a 32-bit resolution, delivering unparalleled accuracy, essential for applications where minute differences in angle can significantly impact performance. Its digital output signal type ensures compatibility with modern control systems, facilitating seamless integration.

    Featuring an operational temperature range from -20°C to +70°C, the B&R 8AC122.60-3 Resolver Interface is built to withstand extreme conditions encountered in industrial environments. This robust design guarantees consistent performance across a wide variety of settings.

    Designed with ease of installation in mind, the interface supports a 4-wire resolver connection, simplifying the setup process without compromising on functionality. Its versatile power supply range from 5V to 24V DC accommodates diverse industrial power sources, ensuring broad applicability.

    With a data transmission rate of 1 Mbit/s, the B&R 8AC122.60-3 Resolver Interface ensures rapid and efficient communication between components, optimizing system efficiency. Its compact dimensions (125mm x 84mm x 63mm) and lightweight design (0.2 kg) make it ideal for space-constrained installations, while its durable construction ensures longevity in demanding environments.
