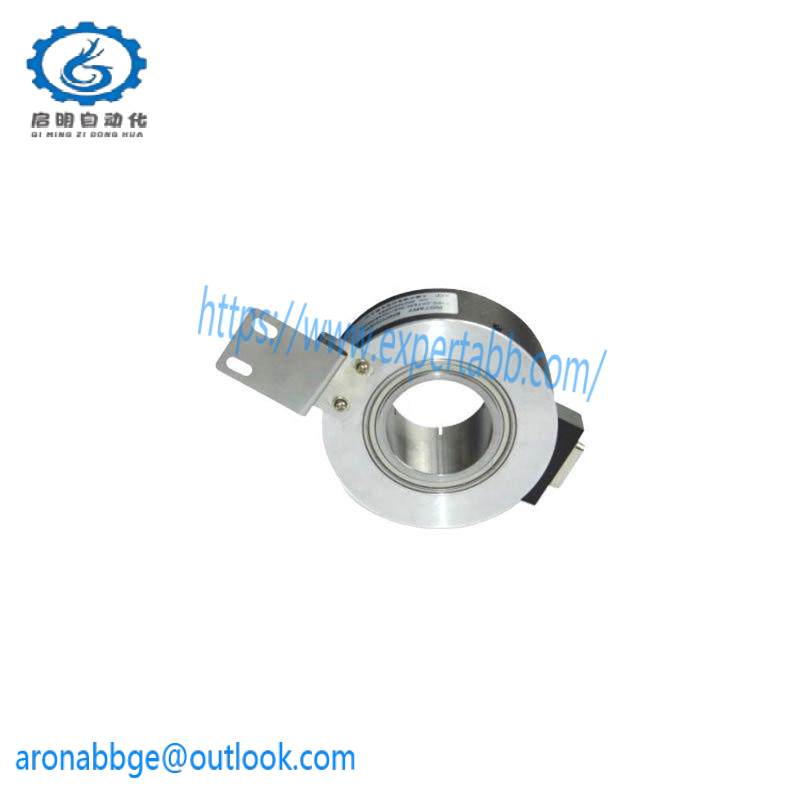

ELCO EB100P38-P6PR-1024: High-precision 1024 Line Hollow Shaft Rotary Encoder

Encoder Type:Rotary Encoder

Model:EB100P38-P6PR

Resolution:1024 Lines

Shaft Diameter:30mm

Operating Voltage:10V to 30V DC

Output Type:Push-Pull

Material:Aluminum Housing

Mounting Type:Flanged

Temperature Range:-20°C to +70°C

IP Rating:IP67

Accuracy:+/- 0.5% of Full Scale

Load Capacity:100N

Weight:Approx. 150g

    The ELCO EB100P38-P6PR-1024 encoder is equipped with a robust aluminum enclosure rated for harsh industrial environments, ensuring durability and reliability under varying temperature conditions. Its IP65-rated design provides protection against dust and water ingress, making it suitable for outdoor and dusty industrial settings.

    With a resolution of 1024 lines per revolution, this encoder delivers high accuracy in angular position measurement, essential for precise control in manufacturing processes, robotics, and automation systems. It supports rotation speeds up to 500 RPM, catering to dynamic applications requiring quick response times.

    Featuring a hollow shaft measuring 30mm in diameter, the ELCO EB100P38-P6PR-1024 allows direct mounting on rotating components without the need for additional adapters. This simplifies installation and ensures compatibility with a wide range of machinery.

    The encoder is powered via a versatile M12 connector, which ensures secure and reliable electrical connection. This modular design facilitates easy integration into existing control systems, minimizing installation time and complexity.

    Engineered for long-term performance, the ELCO EB100P38-P6PR-1024 is compatible with various control systems and interfaces, offering flexibility in application integration. Its robust construction and precise measurement capabilities make it an ideal choice for applications demanding high accuracy and reliability.
