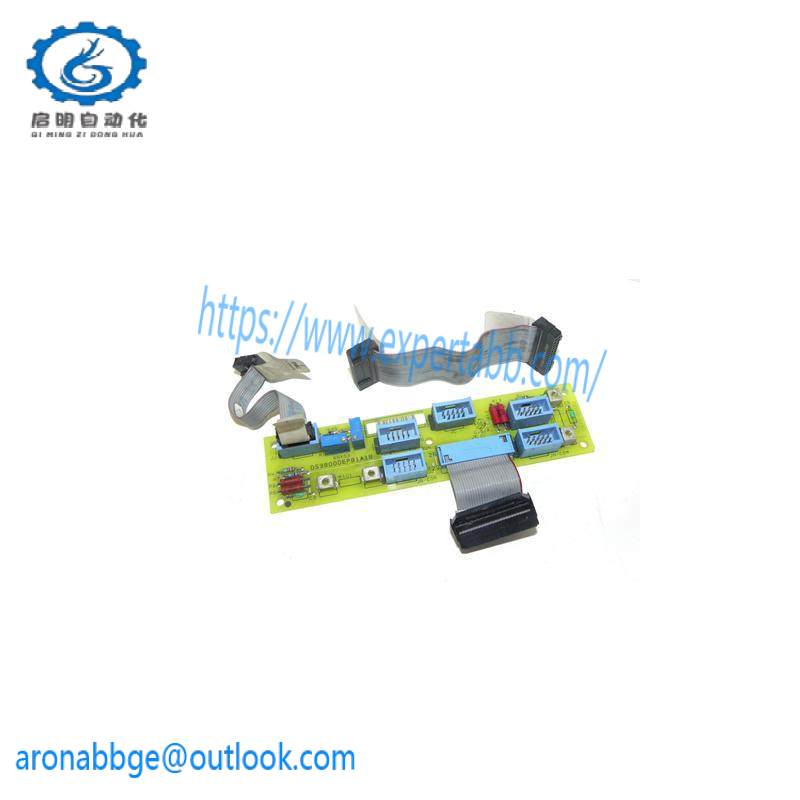

DS3800DEPB1A1B – GE Board

Power Supply Compatibility:Supports 12V DC

Temperature Range:-40°C to +70°C

Connector Types:1 x 20-pin ribbon cable, 5 x 10-pin connectors

Over Temperature Protection:Automatically shuts down if internal temperature exceeds specified threshold

Load Capacity:Up to 200A RMS

Operating Frequency:Up to 60 Hz

Dimensions (WxHxD):178mm x 101mm x 51mm

Weight:Approximately 0.7 kg

    Engineered for seamless integration with Mark IV DS3800 systems, this Excitation Power Board is pivotal in maintaining system reliability and efficiency.

    Featuring robust 20-pin ribbon cable and 5 10-pin connectors, it ensures high-speed data transfer and connectivity with other components.

    Equipped with automatic over temperature shutdown, this board safeguards against overheating, preventing system failures and ensuring operational safety.

    Populated with 4 terminals for easy addition of external components, it offers flexibility in customization and expansion according to specific application needs.

    Accompanied by 2 trimmer resistors, users have the capability to adjust resistance values, optimizing performance for diverse excitation requirements.
