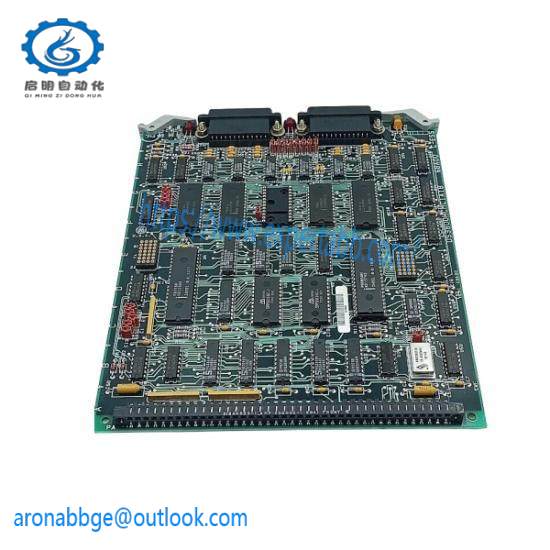

DS3800HCMC – GE Module

Brand:General Electric

Model:DS3800HCMC

Sub-Model:Gas Turbine Daughter Board

Module Category:Mark IV DS3800

Connector Type:Modular Connector

Attachment Feature:Drive Attachment with Retention Levers

Number of Jumpers:14

Indicator LEDs:[“Amber”,”Red”]

Connectors:2 x 34-pin

Capacitors and Resistors:Multiple

Embedded Components:EPROM Modules

Firmware and Code Storage:Erasable Programmable Read-Only Memory

    Integrating advanced engineering and meticulous design, the General Electric DS3800HCMC Gas Turbine Daughter Board is a cornerstone component for maintaining optimal performance in your industrial gas turbine operations. This robust board is equipped with essential features that ensure seamless functionality and enhanced system reliability.

    With its modular connector design, the DS3800HCMC offers flexibility for attachment to various drives, ensuring compatibility across different industrial settings. The retention levers securely hold the board in place, reducing the risk of dislodgement during operation.

    Boasting 14 jumpers, the DS3800HCMC provides users with the ability to customize configurations according to specific system requirements. The inclusion of 1 amber and 2 red indicator LEDs allows for quick status monitoring, enabling operators to swiftly identify potential issues before they escalate.

    The 2 34-pin connectors facilitate efficient data exchange between the daughter board and the main turbine control system, ensuring uninterrupted communication and optimal operational efficiency. The presence of multiple capacitors and resistors contributes to stable power management and signal integrity within the system.

    Embedded on the DS3800HCMC is an erasable programmable read-only memory (EPROM) module, storing firmware and machine-readable code. This feature enables the board to adapt to evolving operational needs without the need for physical hardware modifications, offering a cost-effective solution for maintenance and upgrades.
