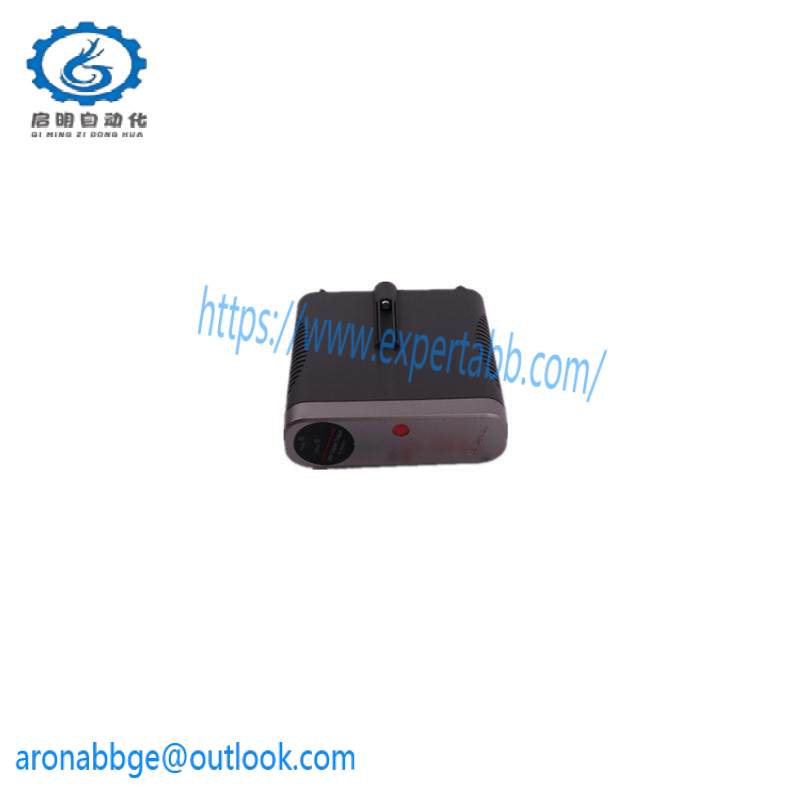

Honeywell 8C-PAIMA1 – High Performance Low Level Analog Input Module

Type:Analog Input Module

Model Number:8C-PAIMA1

Module Series:Industrial Control Solutions by Honeywell

Analog Resolution:12-bit ADC

Power Consumption:5W (max)

Operating Temperature:-20°C to +60°C

Operating Voltage Range:12VDC to 36VDC

Communication Interface:RS-485

Input Current Range:4mA to 20mA

Max Input Current:20mA

Accuracy:+/- 0.02% of full scale

Relay Output:1 SPDT relay

Relay Contact Rating:250VAC / 3A or 24VDC / 3A

Mounting Style:Panel Mount

Dimensions (WxHxD):50mm x 100mm x 20mm

    Honeywell‘s 8C-PAIMA1 is a state-of-the-art low-level analog input module specifically engineered for critical industrial applications where precision and reliability are paramount. This module boasts a high-resolution 12-bit Analog-to-Digital Converter (ADC) that ensures accurate data capture across a wide range of input signals.

    With an operating temperature range from -20°C to +60°C, this module is designed to withstand harsh industrial environments, ensuring continuous operation even under extreme conditions. Its robust design and advanced technology make it suitable for a variety of applications including process control, automation, and monitoring systems.

    Featuring a versatile RS-485 communication interface, the 8C-PAIMA1 supports seamless integration with existing systems, simplifying installation and setup processes. It offers a precise 4mA to 20mA input current range, ideal for measuring various physical quantities like temperature, pressure, and flow.

    For safety-critical applications, the module includes a single SPDT relay output with a rating of 250VAC / 3A or 24VDC / 3A, enabling users to trigger external devices or alarms directly from the module. The panel-mounted design ensures easy installation and accessibility on the factory floor.

    Manufactured using premium materials, the 8C-PAIMA1 is built to last, providing a long service life with minimal maintenance requirements. Its compact size (50mm x 100mm x 20mm) allows for efficient space utilization in any industrial setup.
