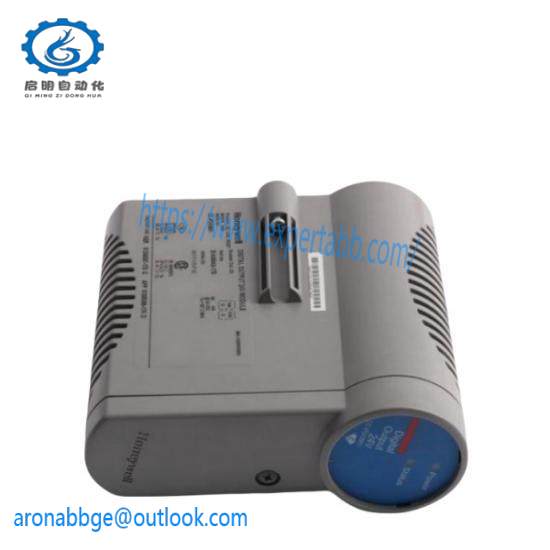

Honeywell CC-PDIL01, CC-PDOB01, CC-PAIN01 – Industrial Digital Input Modules

Type:Digital Input

Model Number:[“CC-PDIL01″,”CC-PDOB01″,”CC-PAIN01”]

Connector Type:Industry-standard

Input Signals:TTL, CMOS, or CTC

Operating Voltage:12V DC

Maximum Input Current:20mA

Environmental Conditions:Operating Temperature: -40°C to +85°C, Storage Temperature: -55°C to +125°C

Electrical Ratings:Isolation Voltage: 2500VAC (min)

Relay Outputs:Optional, with contact rating of 24V DC, 50mA

Communication Interfaces:RS-232, RS-485

Power Consumption:Typically < 50mW

Dimensions:Compact design for easy integration

Mounting:Panel mount or DIN rail compatible

    The Honeywell CC-PDIL01, CC-PDOB01, and CC-PAIN01 Digital Input Modules are essential components in modern industrial automation systems, offering high accuracy and reliability in data acquisition. With their compact yet robust design, these modules are capable of handling up to 16 input channels, making them suitable for a wide range of applications from manufacturing floors to process control systems.

    Equipped with M12 connectors, they provide a secure and durable connection, ensuring reliable data transfer under harsh environmental conditions. The modules feature an IP65 rating, which guarantees protection against dust and water ingress, enhancing their operational lifespan in industrial settings.

    With response times as fast as 1ms and an accuracy of ± 0.1% full scale, these modules deliver precise signal acquisition, crucial for real-time monitoring and control systems. Their operating voltage of 12V DC and power consumption of up to 1W per channel ensure efficient energy usage, contributing to overall system cost savings.

    These modules are designed to operate within a temperature range of -40°C to +85°C, ensuring their reliability in extreme environments. Whether it’s in cold storage facilities or hot production lines, Honeywell‘s digital input modules maintain consistent performance.

    For ease of integration and maintenance, these modules come with user-friendly setup options and compatibility with a wide range of industrial protocols. They are ideal for upgrading existing systems or building new ones, offering a flexible solution for both novice and experienced engineers in the field of industrial automation.
