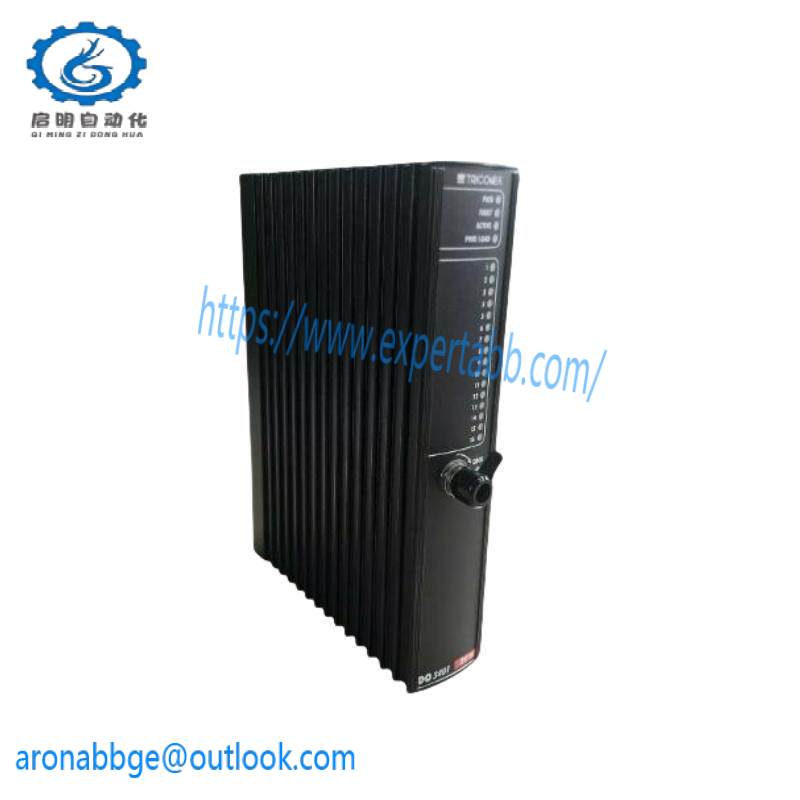

Invensys Triconex 3401 Digital Output Module: High-Performance, Reliable Control Solutions

Model Type:Digital Output Module

Manufacturer:Invensys Triconex

Product ID:3401

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Output Current (Switching):<4.8 A, self-limiting; 3.0 A, typical

Degraded Mode Current:> 0.7 A, self-limiting; 1.5 A, typical

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region

Leakage to Load (Off):Minimal

Commoned Points:16

Weight:N/A (not specified)

    The Invensys Triconex 3401 Digital Output Module is engineered for unparalleled reliability and performance in demanding industrial settings. With its compact design and advanced circuitry, it ensures precise control over processes, reducing downtime and enhancing efficiency.

    Featuring a wide operational voltage range, this module can withstand fluctuations in power supply, making it suitable for a variety of industrial environments. Its self-limiting output current capabilities protect against potential damage from overloads.

    The module’s ability to detect field alarms such as loss of field power and output point shorted ensures continuous monitoring and immediate response to any system issues, minimizing risks and ensuring safety.

    Designed for compatibility with various control systems, the Invensys Triconex 3401 Digital Output Module simplifies integration, allowing for seamless operation within existing infrastructure. This enhances system flexibility and reduces setup time.

    Built with high-quality materials, the module is resistant to corrosion and wear, ensuring longevity and maintenance-free operation in harsh industrial conditions. Its robust design guarantees minimal maintenance requirements, offering cost-effective long-term performance.
