Prosoft MVI56-HART: Enhancing Communication Between Rockwell Automation and HART Devices

In stock

The Prosoft MVI56-HART module enables seamless communication between Rockwell Automation ControlLogix processors and HART-compatible devices. It supports up to 15 HART slave devices per channel, providing an efficient solution for integrating HART technology into existing systems.

Compatibility:Rockwell Automation ControlLogix I/O Compatible Processors

HART Channels Supported:Up to 15 Devices per Channel

Number of HART Channels:4

Data Movement Support:16-bit Integers and Floating Point Data

Configurability:Each Port Individually Configurable

Backplane Interface:Flex Interface via I/O Access

Personality Module:Non-Volatile, Industrial-Grade Compact Flash Card

The Prosoft MVI56-HART module is designed to integrate seamlessly with Rockwell Automation ControlLogix processors, offering unparalleled flexibility in managing HART slave devices. With its ability to interface with up to 15 devices on each of its four channels, this module significantly boosts the efficiency of industrial automation systems. Each port can be independently configured, ensuring maximum adaptability to various applications. The module supports both 16-bit integers and floating point data movement, making it a versatile choice for complex industrial environments. Utilizing the ProSoft Discovery Service (PDS) software, users can easily locate the module on the network and assign temporary IP addresses, streamlining setup processes. Moreover, the included Personality Module, a non-volatile, industrial-grade Compact Flash (CF) card, stores network and module configurations, enabling quick field replacement. Experience enhanced performance and reliability in your industrial automation projects with the Prosoft MVI56-HART.

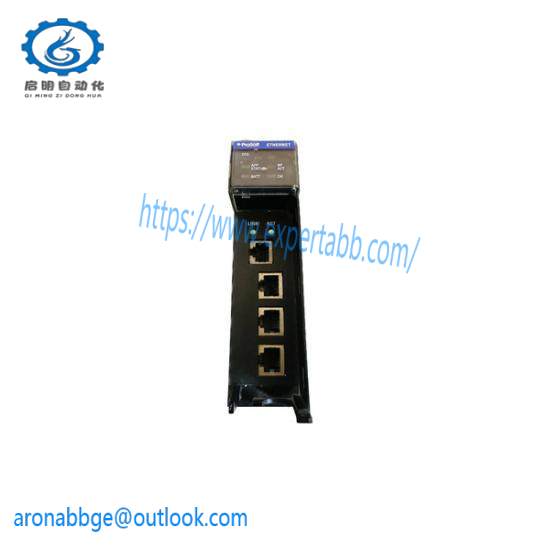

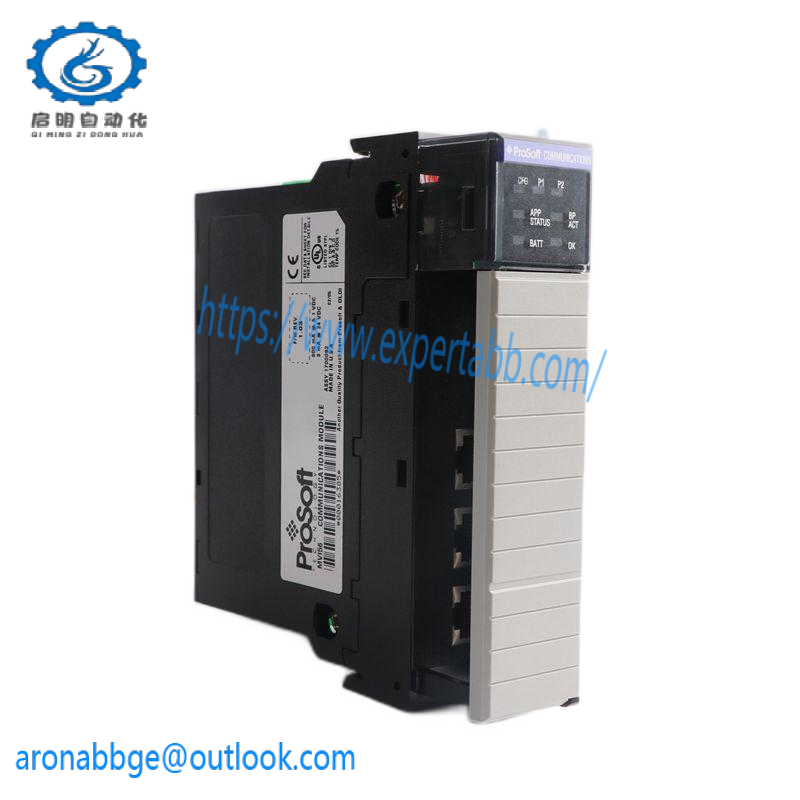

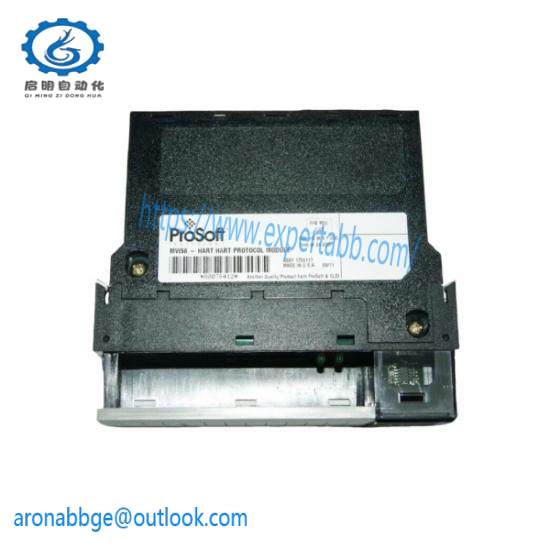

Prosoft MVI56-HART
