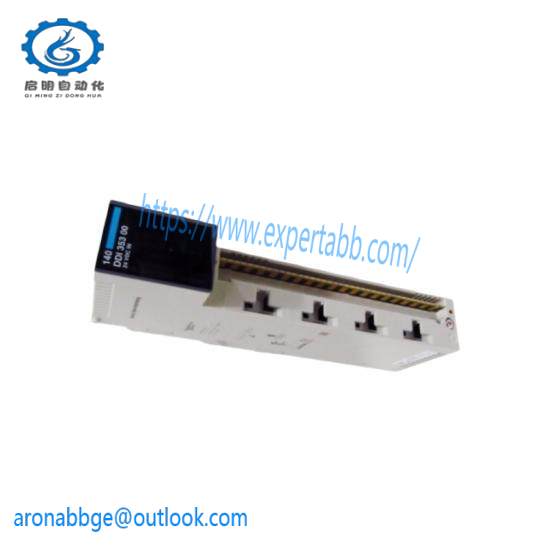

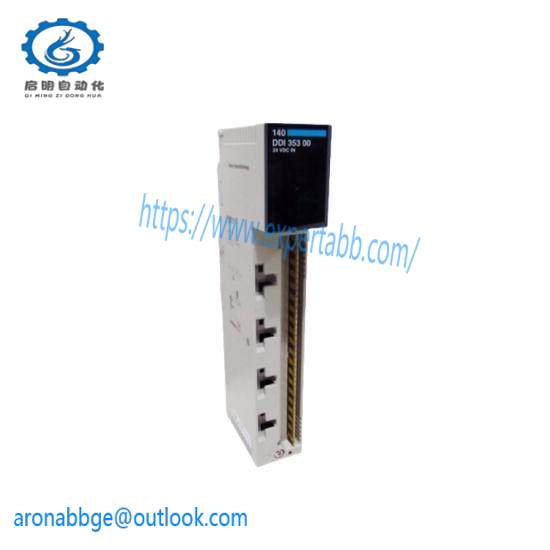

Schneider Electric 140DDI35300 – Quantum PLC Discrete Input Module

Extended Product Type:Module

Product ID:140DDI35300

Schneider Type Designation:Module

Product Category:Low Voltage DC Discrete Input Modules

Discrete Input Number:32

Group of Channels:4

Discrete Input Voltage:24 V DC

Power Dissipation:1.7 W + (0.36 x number of points on)

Bus Current Requirement:330 mA

Product Weight:0.66 lb (US) (0.3 kg)

Input Voltage Limits:19.2…30 V

Input Impedance:2500 Ohm

Absolute Maximum Input:30 V continuous / 56 V during 1.3 ms decaying pulse

    Engineered for seamless integration with Schneider‘s Modicon Quantum automation platform, the 140DDI35300 discrete input module ensures precise control and monitoring of industrial processes.

    With 32 discrete input channels, this module is ideal for applications requiring high channel density, providing robust and accurate data acquisition.

    The module supports a wide range of input voltages from 19.2V to 30V, making it suitable for various industrial environments, ensuring compatibility across diverse systems.

    Featuring a 2500 Ohm input impedance, the 140DDI35300 minimizes signal loss, ensuring reliable data transmission even under varying conditions.

    The maximum leakage current of 200 mA at specified voltages ensures safety and prevents false signals, enhancing system reliability.

    This Schneider module comes with an impressive power dissipation capacity, enabling it to handle heavy loads efficiently without overheating.
