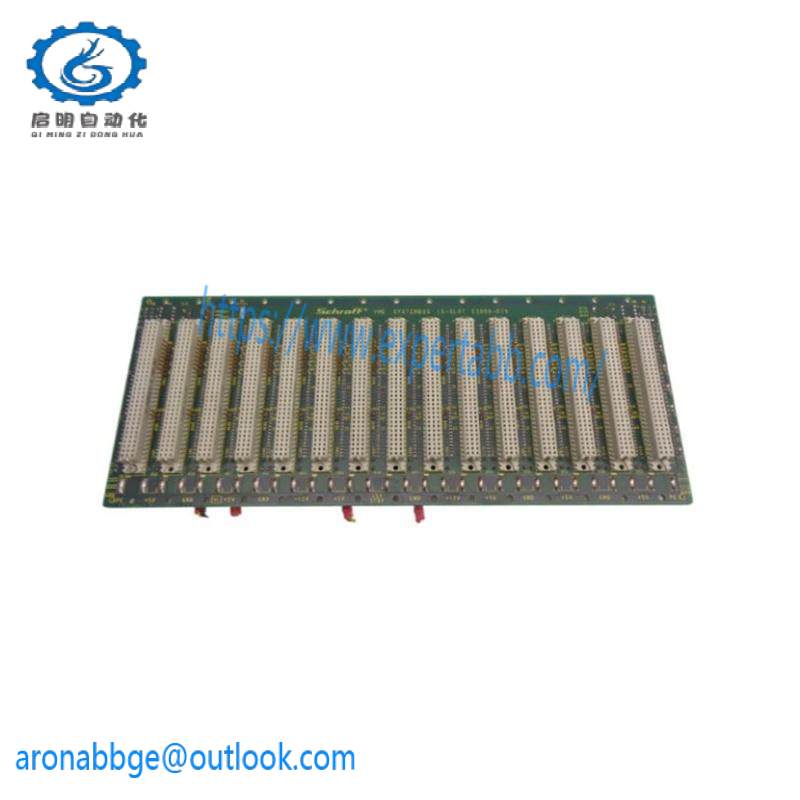

Schroff 23000-015 Backplane Board

Dimension (L x W x H):150mm x 100mm x 30mm

Operating Voltage Range:12VDC to 36VDC

Data Transfer Rate:Up to 10 Mbps

Connection Ports:2 x RS-232, 1 x USB 2.0

Operating Temperature Range:-20°C to +70°C

Compliance Standards:IEC 60950, UL 60950, EN 50155

    The SCHROFF 23000-015 Backplane Board is meticulously engineered for seamless integration into a wide range of industrial control applications, ensuring reliable operation under demanding conditions.

    Crafted from high-grade aluminum, this backplane offers exceptional durability and heat dissipation, critical for maintaining system efficiency over extended periods.

    With its compact design and ample space for up to 10 modules, the board maximizes space utilization, making it an ideal choice for complex control systems where space is at a premium.

    Fully compatible with standard industry connectors, this backplane simplifies the assembly process and streamlines maintenance, enhancing overall system flexibility and reliability.

    Operating within a broad temperature range of -20°C to +60°C, the board ensures stable performance in various industrial environments, from freezing cold workshops to hot manufacturing floors.

    Featuring a robust current rating of up to 5A and a voltage rating of up to 24V DC, the SCHROFF 23000-015 is designed to handle the power demands of modern industrial systems, ensuring peak performance.
