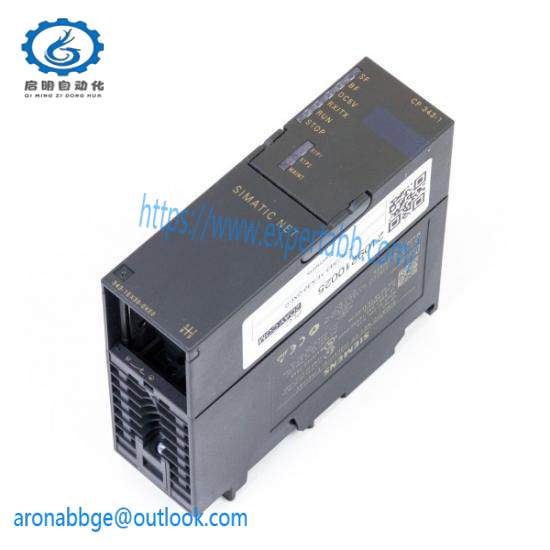

SIEMENS CP343-1 Ethernet Module: 6GK7343-1EX30-OEXO – Industrial Automation Solution

Model Type:Communication Processor

Model Number:6GK7343-1EX30-OEX0

Manufacturer:SIEMENS

Net Weight (kg):0.299

Packaging Dimension:13,20 x 14,80 x 5,10 cm

Connection:Industrial Ethernet via TCP/IP and UDP

Multicast Support:Yes

Communication Protocols:ISO, TCP/IP, UDP, S7 Communication

Fetch/Write Capability:Yes

SEND/RECEIVE:With and without RFC1006

PROFINET IO Device:Integrated 2-port switch ERTEC 200

Module Replacement:Without PG

SNMP Diagnostics:Available

Initialization via LAN:Supported

RJ45 Connections:2x 10/100 Mbit/s

Diagnostic Add-ons:Multicast, Chargeable Communication Modules

Network Synchronization:NTP-CPU Sync

Network Speed:10/100 MBit

    The SIEMENS CP343-1 Ethernet module is specifically engineered for robust integration into industrial control systems, ensuring reliable data transmission under challenging conditions. Its compact design fits seamlessly within the SIMATIC S7-300 framework, enhancing the overall system performance.

    Equipped with advanced communication capabilities, this module supports a multitude of data transfer protocols, including TCP/IP and UDP, facilitating versatile connectivity and data exchange within industrial environments.

    Key features include enhanced diagnostic tools such as Multicast and SNMP diagnostics, which provide comprehensive monitoring and troubleshooting support, ensuring uninterrupted operation and minimizing downtime.

    The module’s ability to perform fetch/write operations, along with SEND/RECEIVE functionalities, enables efficient data management and communication, making it indispensable for optimizing industrial processes.

    With support for RFC1006 and PROFINET IO controllers, the SIEMENS CP343-1 Ethernet module offers a scalable solution for integrating with existing or future network infrastructures, ensuring compatibility and adaptability across various automation landscapes.
