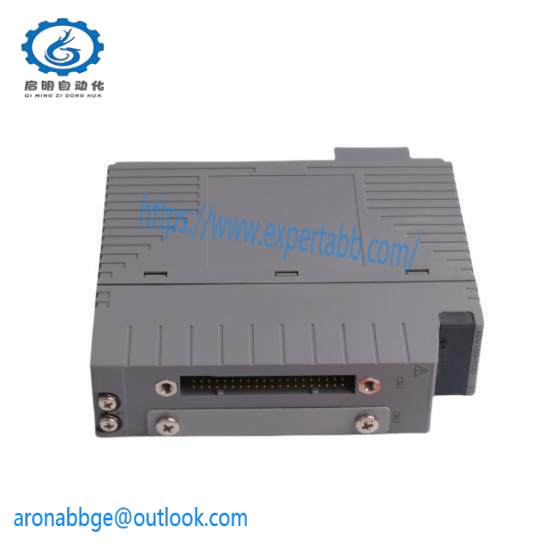

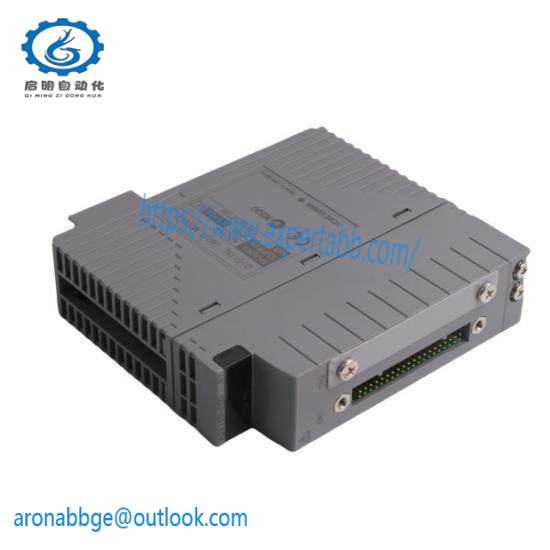

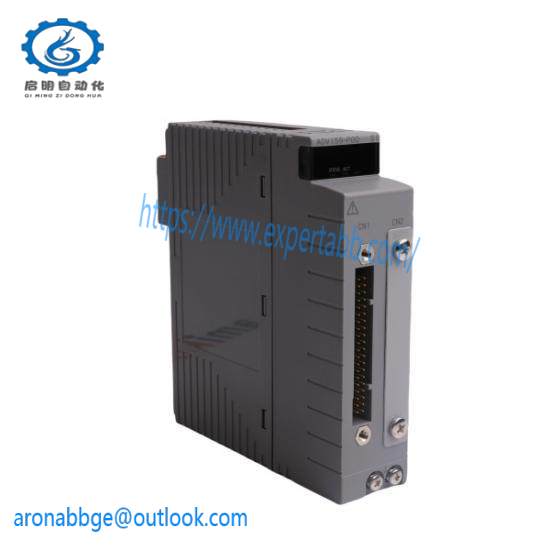

Yokogawa ADV159-P01 | Industrial Grade Digital Input Module

Number of Input Channels:32

Input Voltage Range:24 V DC (sink/source)

Input ON Voltage:18 to 26.4 V DC

Input OFF Voltage:5.0 V DC or less

Maximum Allowable Input Voltage:30.0 V DC

Withstanding Voltage:Between…

Current Consumption:4.1 mA±20 % / channel

Weight:0.40 kg

Compatibility:Centum-ST compatible

    The Yokogawa ADV159-P01 Digital Input Module is a high-performance component specifically tailored for integration into industrial control systems. It offers 32 digital input channels, ensuring robust and reliable signal processing.

    Equipped with 24 V DC input capability, this module supports both sinking and sourcing operations, making it versatile for a wide range of applications within the industrial automation sector.

    Each channel is rated for an operational input voltage range from 18 to 26.4 V DC for ON state, and 5.0 V DC or less for OFF state, ensuring compatibility with various field devices.

    The maximum allowable input voltage is set at 30.0 V DC, providing ample safety margin against voltage surges. The module’s input current consumption is precisely controlled at 4.1 mA ± 20% per channel, optimizing power usage.

    Weighing just 0.40 kg, the ADV159-P01 is lightweight yet durable, ensuring easy installation and minimal strain on infrastructure. Its Centum-ST compatibility ensures seamless integration with existing systems, enhancing efficiency and reducing integration costs.

    This module is designed with reliability and performance in mind, making it an ideal choice for industries requiring precise and efficient digital signal processing.
