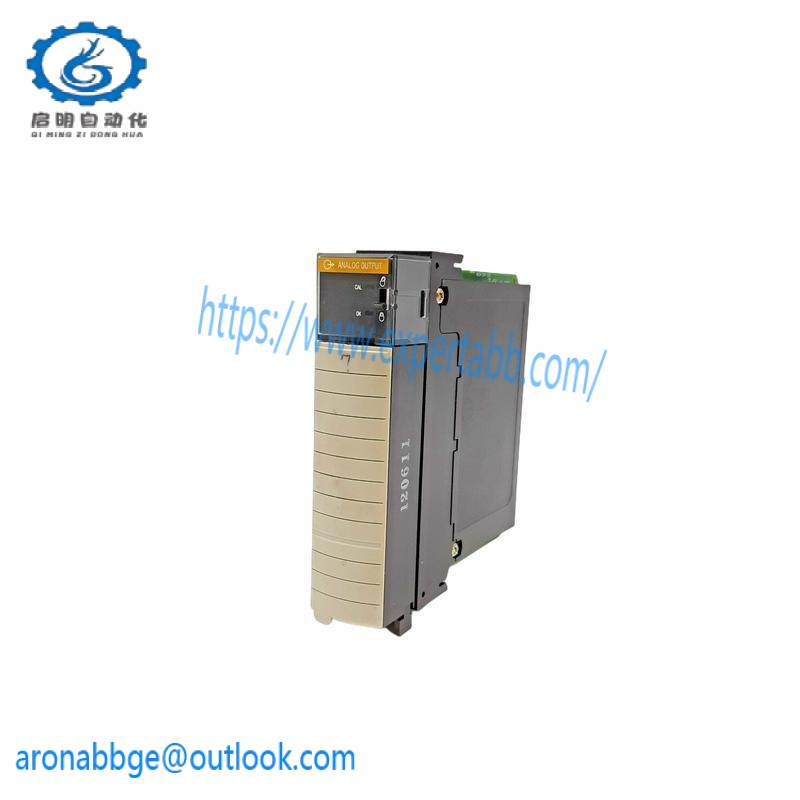

AB 1756-OF4: Industrial Grade Analog Output Module for Enhanced Control Systems

Type:Analog Output Module

Model:1756-OF4

Manufacturer:Allen-Bradley

Module Size:Compact

Power Supply:DC 24V

Current Rating:10mA max.

Signal Output:0-10V or 4-20mA

Accuracy:+/- 1% of Full Scale

Temperature Range:-20°C to +60°C

Operating Humidity:5% to 95% non-condensing

Mounting:Panel Mount

    The AB 1756-OF4 Analog Output Module is engineered for precision and reliability in industrial automation environments. Its compact design ensures efficient use of space on control panels, while its high-precision signal output guarantees accurate control signals for a wide range of industrial applications.

    Featuring a robust power supply compatible with DC 24V systems, this module is designed to withstand the harsh conditions typical of industrial settings. It offers a current rating of up to 10mA, providing flexibility for various load requirements.

    With the ability to generate analog signals in either 0-10V or 4-20mA formats, the AB 1756-OF4 module is versatile enough to meet the needs of diverse industrial processes. Its accuracy of +/- 1% of full scale ensures minimal error margins, critical for maintaining high operational efficiency.

    Operated within a temperature range of -20°C to +60°C and a humidity level of 5% to 95% non-condensing, the module is designed for long-term reliability in varying environmental conditions. This makes it suitable for use in industries where environmental extremes are common.

    For ease of installation and maintenance, the AB 1756-OF4 Analog Output Module comes with panel mounting capabilities, simplifying integration into existing control systems. Its straightforward configuration and compatibility with Allen-Bradley PLCs make it an ideal choice for seamless automation solutions.
