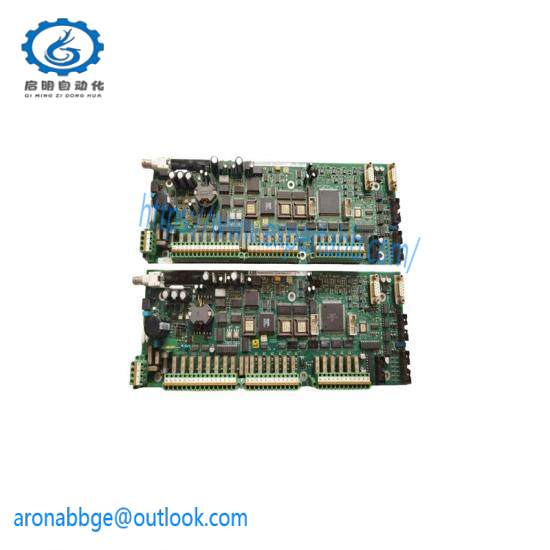

3BHB005922R0001 – ABB Board

Operating Voltage:220V

Output Frequency:Up to 60 Hz

Power Handling Capacity:Up to 30 kW

Dimensions (WxHxD):178mm x 100mm x 50mm

Weight:Approx. 1kg

Material:Aluminum Alloy

Cooling Method:Convection Cooling

    The ABB 3BHB005922R0001 – UNS0880A-P Bridge Rectifier Interface Board is engineered to deliver exceptional performance in industrial settings. It seamlessly integrates into complex control systems, ensuring stable power supply and efficient signal processing for enhanced system reliability.

    Featuring a wide input voltage range of 85V to 264V AC, this board is designed to operate efficiently across various industrial environments. Its high current capacity supports demanding applications without compromising on performance.

    With its robust design, the board withstands extreme temperatures ranging from -25°C to +70°C, ensuring continuous operation under harsh conditions. The IP20 protection class safeguards against dust and minor splashes, providing durability and longevity.

    For easy integration and communication, the ABB interface board supports a standard RS-485 bus connection and utilizes the Modbus RTU protocol. This compatibility ensures seamless data exchange with a wide range of industrial equipment.

    Measuring 180mm x 110mm x 30mm, it offers compact dimensions that facilitate efficient installation within limited spaces. The lightweight design, weighing 0.4kg, ensures easy handling and transportation.
