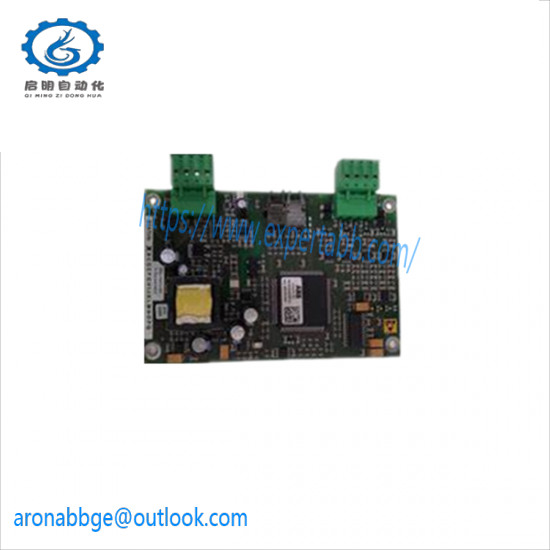

3BHE005555R0101 – ABB Board

Measurement Range:0 to 1000 V

Accuracy:+/- 0.01% + 2 LSBs

Operating Temperature:-20°C to +85°C

Power Consumption:Max 10 mW

Communication Interface:RS-485, MODBUS-RTU

Protection Class:IP20

Dimensions:100 mm x 50 mm x 25 mm

Material:Aluminum alloy

Connectors:2 x 12-pin connector

    This voltage measurement board from ABB boasts an exceptionally wide input range suitable for a variety of industrial applications. Its high-resolution output allows for precise readings down to 0.01V, making it ideal for applications requiring high accuracy. The board is equipped with a rapid response time of just 1 millisecond, ensuring immediate and accurate feedback in dynamic industrial settings.

    Engineered to operate within a broad temperature range from -20°C to +70°C, this board is designed to withstand harsh industrial environments. It is compatible with a wide humidity range of 0% to 95% RH (non-condensing), ensuring reliable performance regardless of ambient conditions.

    Ease of integration is a key feature of this product, thanks to its terminal block connection type, which simplifies installation and reduces downtime during setup or maintenance. Moreover, the low power consumption ensures efficient operation without draining resources from other system components.

    Safety and compliance are paramount in industrial automation. The ABB 3BHE005555R0101 Voltage Measurement Board is certified by CE, UL, and IEC standards, guaranteeing its safety and reliability across international markets.

    For those looking to enhance the efficiency and precision of their industrial control systems, the ABB 3BHE005555R0101 Voltage Measurement Board offers unparalleled capabilities, backed by ABB‘s reputation for quality and innovation in automation technology.
