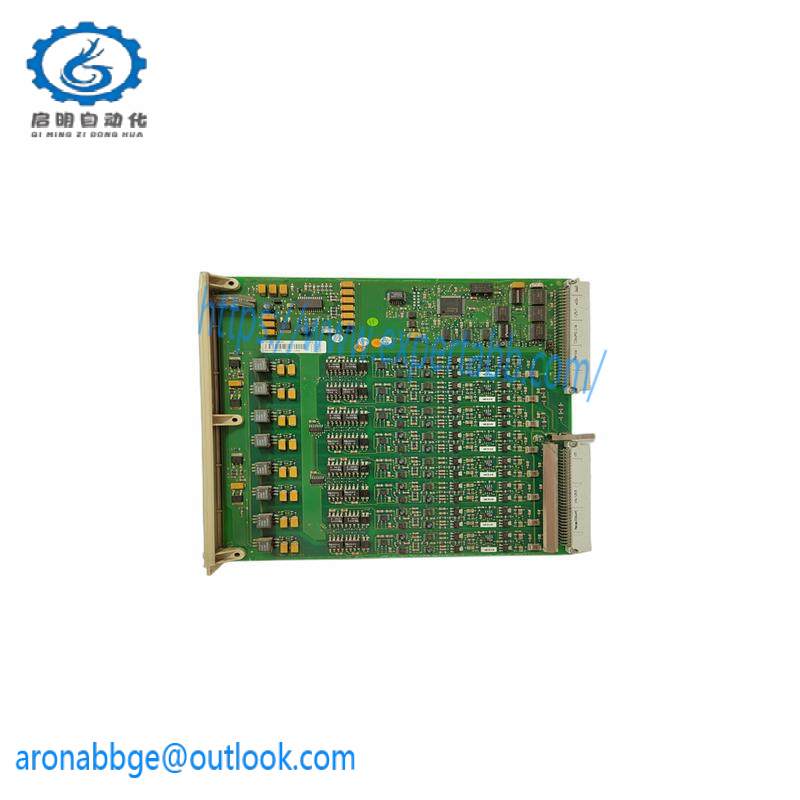

ABB 3BSE018293R1 – DSAO 120A Analog Output Board, Advanced Industrial Control Solution

Operating Voltage:220V

Output Frequency:50kHz

Number of Channels:1

Analog Resolution:12 bits

Maximum Current Output:120A

Communication Protocol:Modbus

Input Resistance:1 kΩ

Operating Temperature Range:-20°C to +50°C

Storage Temperature Range:-40°C to +70°C

Certification:CE, UL, FCC

    Engineered with precision in mind, the ABB 3BSE018293R1 Analog Output Board is a critical component for industries requiring high-level control and monitoring. It ensures consistent performance across various operational temperatures, making it ideal for both indoor and outdoor applications.

    Featuring an input voltage range of 24V DC, this board offers versatility in power supply options. The 120A output current capability allows for the control of heavy-duty loads without compromising on efficiency.

    Equipped with an analog 4-20mA output signal, the board provides seamless integration with a wide range of industrial devices and systems. This compatibility simplifies installation and setup processes, enhancing productivity.

    The board’s robust design includes a maximum load capacity of 600 Ohms, ensuring stable operation even under varying load conditions. This feature is particularly beneficial in scenarios where precise current control is essential.

    Integrated with MODBUS RTU communication interface, the ABB 3BSE018293R1 facilitates easy data exchange between the board and other system components. This capability streamlines the control system architecture, enabling efficient data management and remote monitoring.
