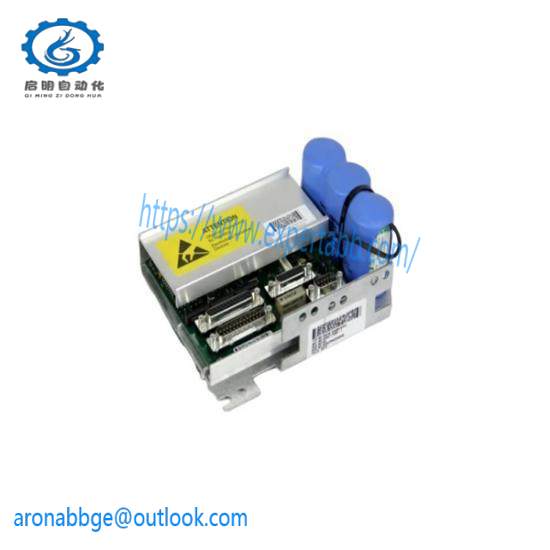

ABB 3HAC173961 DSQC562 Serial Measurement Board – Precision for Industrial Control Solutions

Manufacturer:ABB

Model:3HAC173961

Sub-model:DSQC562

Application:Industrial Automation

Serial Measurement:Yes

Data Rate:Up to 32000 samples per second

Accuracy:+/- 0.1% of reading or 0.05% FS

Resolution:12 bits

Analog Inputs:4 channels

Digital Inputs:2 channels

Digital Outputs:2 channels

Operating Voltage:24VDC

Operating Temperature:-20°C to +60°C

Dimensions:96mm x 48mm x 22mm

Weight:50g

Communication Interface:RS-232 / RS-485

Certification:CE, UL, CSA

    The ABB 3HAC173961 DSQC562 Serial Measurement Board is a state-of-the-art solution for real-time data acquisition and control in manufacturing environments. Its robust design ensures reliable operation under harsh industrial conditions.

    Featuring advanced signal processing capabilities, this board accurately captures and processes serial data streams from sensors and other peripherals, making it ideal for applications requiring precise measurements and fast response times.

    With its 8 analog input channels, the DSQC562 can interface with a wide variety of sensors, enabling comprehensive monitoring of temperature, pressure, and other critical parameters in industrial processes.

    The 4 analog output channels allow for flexible control over actuators and other devices, ensuring precise adjustments and responses to the measured data. This feature is crucial for implementing closed-loop control systems.

    The board’s compact size and lightweight design facilitate easy installation and integration into existing control systems, minimizing downtime and reducing maintenance requirements.
