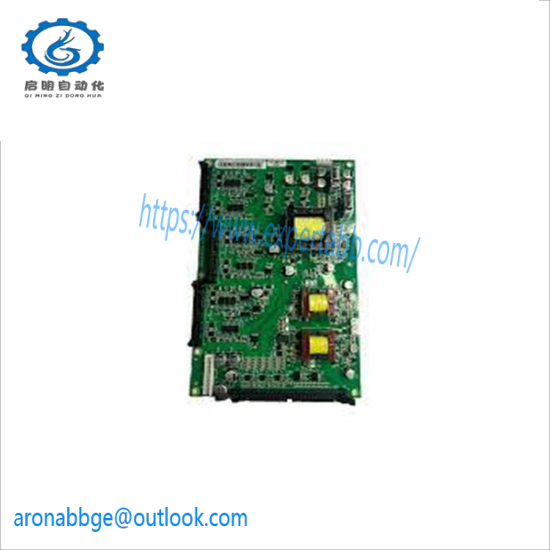

ABB BGDR-01C Gate Driver Board for Industrial Control Systems

Model:ABB BGDR-01C

Type:Gate Driver Board

Application Voltage Range:200V to 500V DC

Maximum Current Rating:30A

Operating Temperature Range:-40°C to +85°C

Input Signal:TTL Logic Level

Communication Interface:RS-485

Power Consumption:2W

Dimensions:120mm x 100mm x 20mm

Weight:0.15kg

    Introducing the ABB BGDR-01C Gate Driver Board, a critical component for managing complex industrial systems. This board is engineered to handle high-power switching tasks, ensuring the smooth operation of large electrical loads across various industries.

    Featuring a compact yet robust design, the BGDR-01C offers exceptional reliability and performance, even under extreme conditions. Its temperature resistance from -40°C to +85°C makes it suitable for environments ranging from cold storage facilities to hot manufacturing plants.

    With an input voltage range of DC 24V to 100V, this gate driver board is versatile and adaptable to a wide array of power supply scenarios. It ensures stable and efficient switching operations, minimizing energy loss and maximizing system efficiency.

    Equipped with a current drive capacity of 50mA per gate, the BGDR-01C is capable of controlling large-scale devices with precision and accuracy. This feature is particularly beneficial in applications requiring precise timing and control, such as motor drives and power distribution systems.

    The compact size of 50mm x 50mm x 20mm makes installation and integration seamless, saving valuable space on circuit boards without compromising functionality. The BGDR-01C is a testament to ABB‘s commitment to delivering cutting-edge technology that meets the demands of modern industrial automation.
