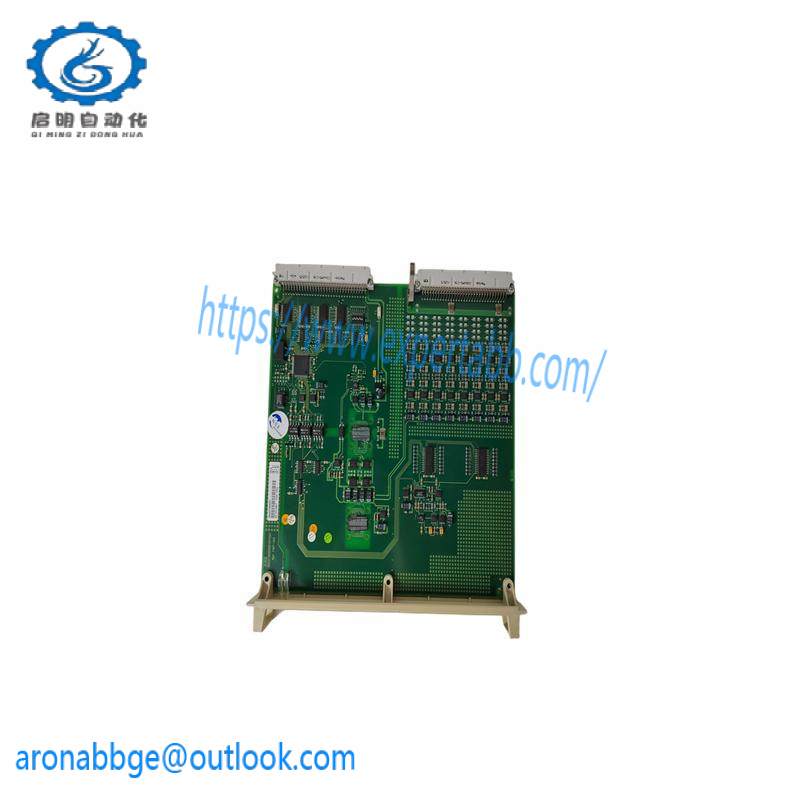

ABB DSAI146 3BSE007949R1 – RTD Input Module, Precision Temperature Measurement for Industrial Control

Product Type:RTD Input Module

Model Number:3BSE007949R1

Manufacturer:ABB

Operating Range:-200°C to +500°C

Accuracy:+/-0.1% of reading

Supply Voltage:10…30 VDC

Current Consumption:Max. 20 mA

Connectors:5-pin modular

Dimensions (WxHxD):101.6mm x 25.4mm x 101.6mm

Weight:Approx. 0.2kg

Temperature Coefficient:±0.01%/°C

Operating Conditions:Ambient temperature: -20…+70°C

Humidity:Non-condensing: 5…95%

Enclosure Rating:IP20

    The ABB DSAI146 3BSE007949R1 RTD Input Module is designed for seamless integration into complex industrial control systems, ensuring reliable and precise temperature measurements.

    Equipped with advanced signal processing algorithms, this module optimizes data accuracy even under varying environmental conditions, making it suitable for a wide range of industrial applications including chemical processing, HVAC systems, and material handling.

    Crafted from high-grade materials, the module ensures durability and longevity, capable of enduring harsh industrial environments without compromising performance.

    User-friendly installation and configuration options simplify integration into existing systems, reducing downtime and maintenance requirements.

    Comprehensive diagnostic features provide real-time feedback on module health and status, enabling proactive maintenance and minimizing unexpected system interruptions.
