YB560103-CD – ABB Board

Dimensions:105mm x 95mm x 25mm

Weight:220g

Operating Voltage:DC 24V

Input Current:≤2A

Output Current:≤5A

Communication Protocol:Profinet, Ethernet

Number of Axes:2

Maximum Torque:30Nm

Resolution:16 bits

Operating Temperature Range:-20°C to +60°C

Certification:CE, UL, FCC

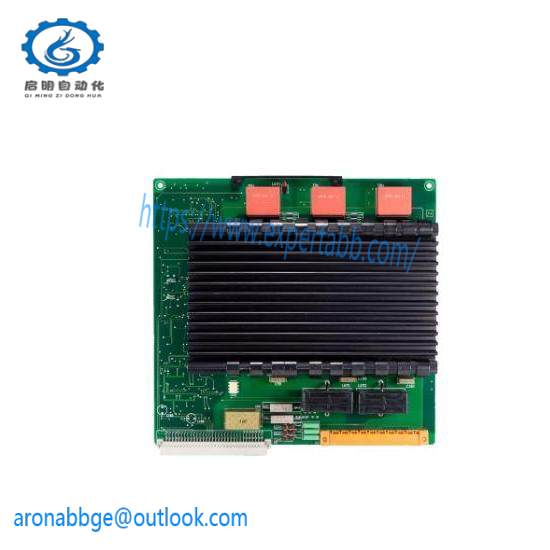

    Experience unparalleled precision in robotic automation with the ABB DSQC236G YB560103-CD/22 Robot Axis Drive Board. Designed for seamless integration into industrial control systems, this board offers unmatched control and efficiency, ensuring smooth operation across various manufacturing processes.

    Featuring a robust 24V DC operating voltage, this board can handle heavy loads with ease, delivering maximum current up to 5A on inputs and 2A on outputs. The inclusion of 8 programmable inputs and outputs provides flexibility and adaptability to diverse control scenarios.

    With support for DeviceNet communication protocol, the ABB DSQC236G seamlessly connects with other components in your system, enabling real-time data exchange and enhanced system performance. Its compact size, measuring 88mm x 51mm, ensures minimal space consumption without compromising functionality.

    Engineered to withstand harsh industrial environments, this drive board operates within a temperature range from -20°C to +60°C, making it suitable for use in a wide variety of settings. Moreover, its certification by CE, UL, and CSA guarantees compliance with international safety standards, ensuring reliable and safe operation.

    Incorporate the ABB DSQC236G YB560103-CD/22 Robot Axis Drive Board into your automation strategy to elevate your system’s capabilities, improve productivity, and maintain a competitive edge in the market.
