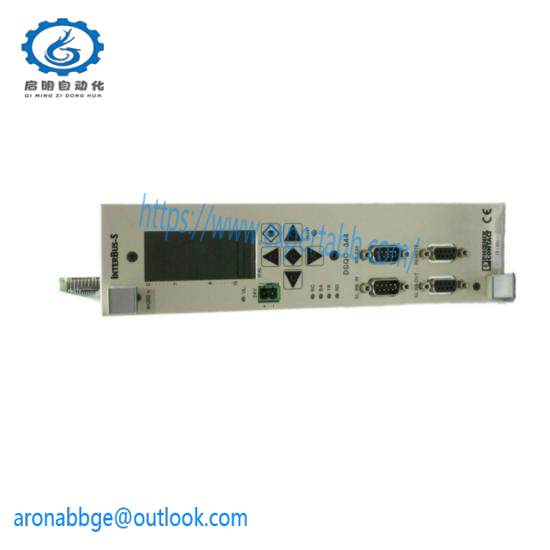

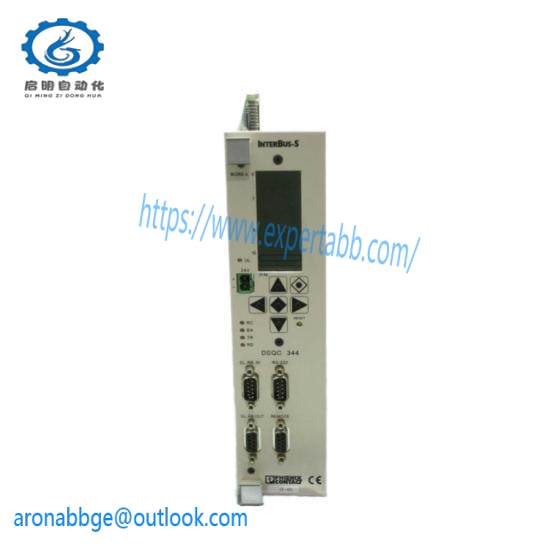

ABB DSQC344 Control Module – Precision Industrial Automation

Operating Voltage:24 V DC

Input Current:Max. 250 mA

Output Current:Max. 250 mA per channel

Communication Interface:RS-485

Relay Channels:8 Form C relays

Relay Operating Voltage:24 V DC

Relay Operating Current:250 mA

Number of Analog Inputs:16

Analog Input Resolution:12-bit

Analog Output Channels:16

Analog Output Resolution:12-bit

Power Supply:Internal power supply for inputs and relays

Dimensions:96 mm x 96 mm x 100 mm

Weight:250 g

    The ABB DSQC344 is a highly efficient control module that seamlessly integrates into a variety of industrial automation systems, offering superior performance and reliability.

    With its robust design and versatile functionality, the DSQC344 enables precise control over processes, ensuring optimal efficiency and productivity in manufacturing environments.

    Equipped with 8 digital inputs and 4 digital outputs, this module provides a flexible solution for data acquisition and process control, facilitating seamless communication within complex industrial setups.

    Featuring an operating voltage of DC 24 V and a maximum current of 200 mA, the DSQC344 ensures stable operation across diverse applications, backed by a power consumption typically below 1 watt for energy-efficient performance.

    Designed for reliability in challenging conditions, the module operates effectively within a temperature range of -20°C to +60°C and withstands high humidity levels up to 95% without condensation, making it suitable for various industrial environments.

    Compliance with CE, UL, CSA, and ISO 9001 certifications ensures that the ABB DSQC344 meets stringent safety and quality standards, offering peace of mind for users seeking dependable solutions for their automation needs.
