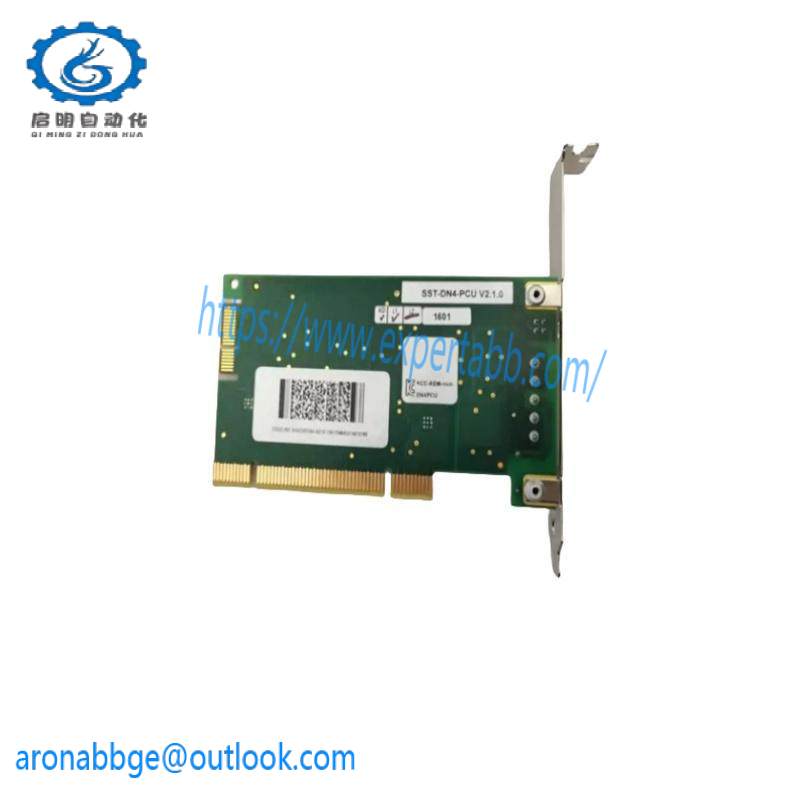

ABB DSQC697 3HAC037084-001 3HNA023282-001 3HAC057981-003 – Industrial I/O Modules for Enhanced Control and Monitoring

Operating Voltage:24V DC

Current Consumption:≤ 200mA

Input Resistance:1kΩ

Output Configuration:24V Relay

Communication Interface:DeviceNet

Operating Temperature Range:-25°C to +60°C

Enclosure Rating:IP20

Dimensions (WxHxD):56mm x 100mm x 35mm

Weight:50g

    The ABB DSQC697 I/O modules are engineered for robust performance in demanding industrial environments. Each module is equipped with 16 digital inputs and 8 digital outputs, providing flexibility in configuring your automation system to meet specific needs.

    Featuring a PCB mount design with a compact 60-pin connector, these modules offer easy integration into existing systems without compromising on space or functionality. They are compatible with EtherCAT and CANopen communication protocols, ensuring seamless interoperability with other devices in your network.

    Operating within a temperature range of -20°C to +60°C, these modules are designed to withstand extreme conditions, ensuring reliable operation even in harsh industrial settings. They are also rated for a humidity level of 5% to 95% non-condensing, making them suitable for various environmental conditions.

    With an operating voltage range of 10 V DC to 30 V DC, the DSQC697 modules can handle a wide variety of power requirements, providing versatility in power supply options. Their protection class IP20 ensures they are protected against accidental contact and dust ingress, safeguarding them from common industrial hazards.

    Incorporating the ABB DSQC697 into your automation system will enhance its capabilities with advanced connectivity, enhanced reliability, and improved efficiency. This makes it an ideal choice for manufacturers seeking to optimize their production processes and streamline their operations.
