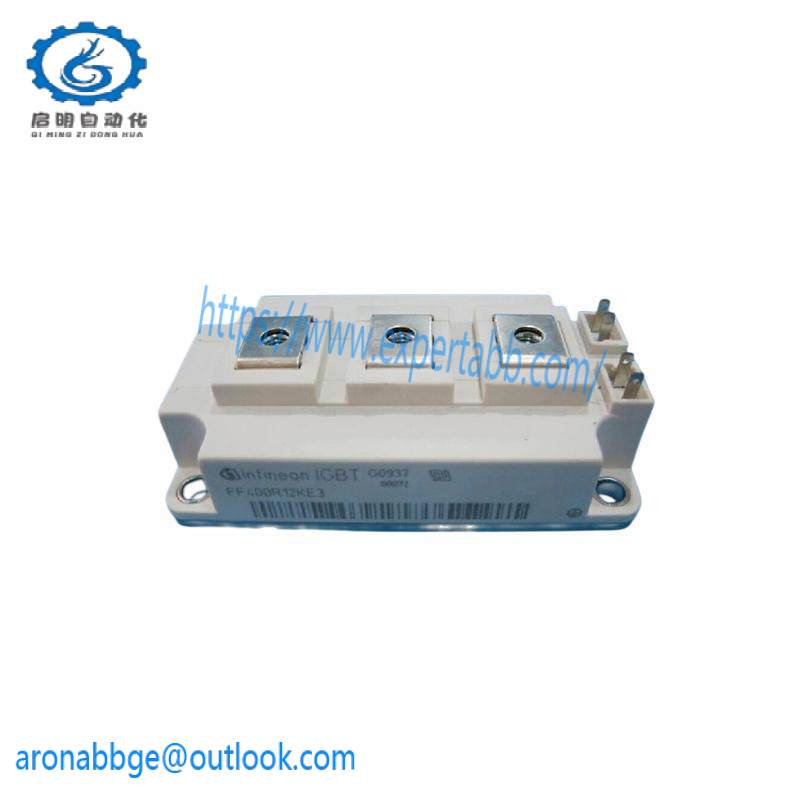

ABB FF400R12KE3, High-Power IGBT Module

Power Rating:400 kW

Voltage Rating:1200 V

Current Rating:1200 A

Operating Temperature Range:-40°C to +150°C

Insulation Resistance:≥ 10 MΩ @ 500 VDC

Cooling Method:Water Cooled

Input Signal Type:Digital Control Signals

Switching Frequency:Up to 10 kHz

Package Size:172 x 148 x 58 mm

Net Weight:1.5 kg

    The ABB FF400R12KE3 IGBT Module stands out for its robust design and high power capabilities, making it an ideal choice for demanding industrial control systems where reliability and performance are paramount. Its water-cooled system ensures optimal heat dissipation under various operating conditions, enhancing system longevity and efficiency.

    Featuring a wide temperature range from -40°C to +150°C, this module is engineered to withstand extreme environments commonly encountered in manufacturing and process industries. The module supports digital control signals for precise and reliable operation, facilitating seamless integration into complex automation systems.

    With a power rating of 400 kW and a voltage rating of 1200 V, the ABB FF400R12KE3 is capable of handling heavy loads efficiently, while its current rating of 1200 A ensures it can manage high-amperage applications without compromise. The module’s insulation resistance of ≥ 10 MΩ at 500 VDC further underscores its safety and reliability.

    Engineered for efficiency, the ABB FF400R12KE3 boasts a switching frequency of up to 10 kHz, allowing for quick response times and reduced energy consumption. This feature is particularly advantageous in applications requiring fast cycle times or high-frequency operations.

    Compact yet powerful, the package size of 172 x 148 x 58 mm and a net weight of 1.5 kg make the module easy to integrate into existing systems without increasing physical footprint. The ABB FF400R12KE3 IGBT Module is a testament to ABB‘s commitment to innovation and reliability in the field of industrial automation.
