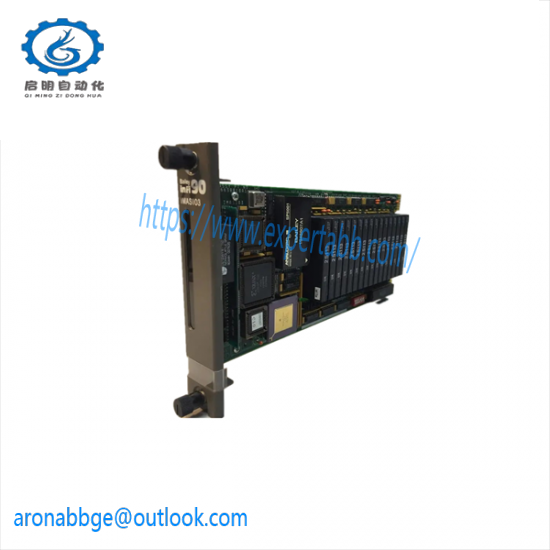

ABB IMAS102 Analog Input Module – High Precision, Wide Range, Industrial Control Solutions

Model Type:IMAS102

Product Brand:ABB

Module Type:Analog Input

Application Environment:Indoor industrial environments

Operating Voltage:24V DC

Data Acquisition Rate:1000 samples per second

Accuracy Range:±0.01% of full scale

Input Signal Range:-5 to +5 VDC

Number of Channels:8

Dimensions (LxWxH):100mm x 90mm x 25mm

Weight:0.2kg

Connection Type:Terminal block

Temperature Range:-20°C to +70°C

    The ABB IMAS102 Analog Input Module is a critical component for industrial control systems, engineered to provide unparalleled precision and reliability. This module is specifically designed to enhance data acquisition processes, ensuring accurate measurements in a variety of industrial applications.

    Featuring 8 high-resolution analog input channels with a 12-bit resolution, it supports both -10 V to +10 V and 0 V to 10 V input ranges, making it versatile for different measurement needs. The sampling rate of up to 10 kHz ensures real-time data capture without compromising on speed or accuracy.

    With an impressive ±0.01% accuracy at full scale, the ABB IMAS102 guarantees reliable performance in critical operations, reducing the risk of errors and improving overall system efficiency. It operates efficiently within a wide temperature range from -25°C to +85°C, ensuring consistent performance under varying environmental conditions.

    Equipped with a robust DC 24 V supply, this module is designed to withstand demanding industrial environments. Its IP20 enclosure rating provides protection against dust and splashes, enhancing its durability and safety in industrial settings.

    The compact size of 94 mm x 110 mm x 94 mm makes it easy to integrate into existing systems without compromising on space. Weighing just 0.5 kg, it’s lightweight and portable, ideal for installation in various locations within a factory floor.
