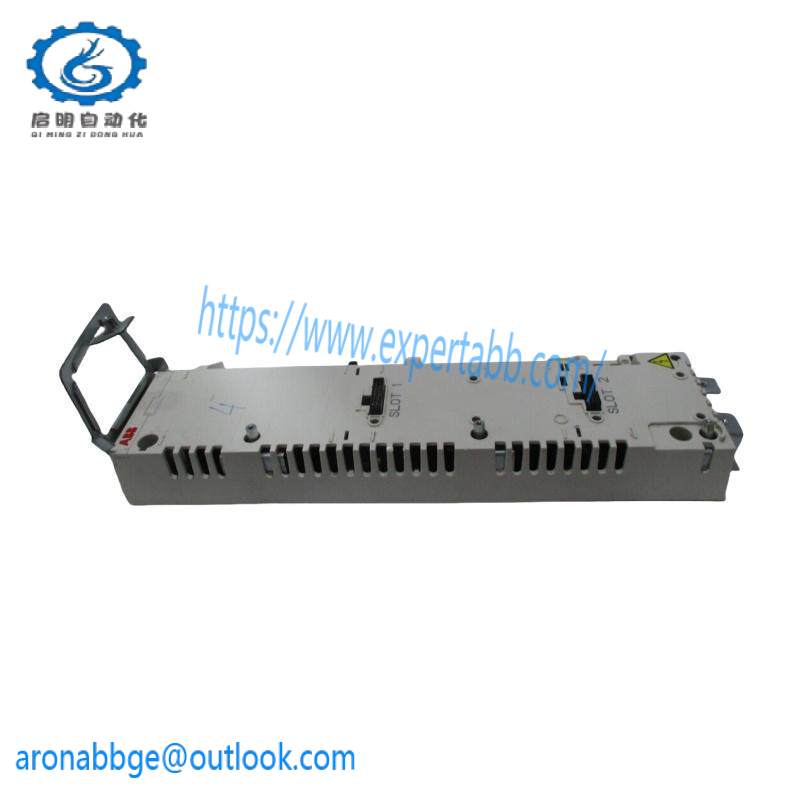

ABB JCU-21 Inverter Main Board, Advanced Industrial Control Module

Brand:ABB

Model:JCU-21

Submodel:

Module Category:Inverter Main Board

Processor Type:Advanced Microprocessor

Power Handling Capacity:Up to 750 kW

Control Interface:Ethernet, CAN Bus, Modbus

Operating Temperature Range:-20°C to +60°C

Reliability Rating:IEC 61800-3 compliant

Dimensions:205mm x 115mm x 155mm

Weight:4.5 kg

    The ABB JCU-21 Inverter Main Board is engineered with precision to deliver unparalleled performance in demanding industrial environments. Its compact design integrates seamlessly into various systems, enhancing operational efficiency without compromising on space.

    Equipped with advanced communication interfaces such as RS485 and Modbus RTU, this board facilitates easy integration with existing automation systems, ensuring smooth data exchange and control over processes.

    Designed for robust performance, the JCU-21 operates within a wide temperature range, from -20°C to +60°C, making it suitable for use in a variety of climates. It consumes 50W, which ensures energy-efficient operation without overheating.

    With a max current capacity of 30A, this board is capable of handling high loads while maintaining stability and reliability. The DC 24V output voltage provides the necessary power for a wide array of industrial devices and machinery.

    For enhanced safety and durability, the JCU-21 features an IP20 protection class, safeguarding against dust and splashes of water. This ensures longevity in industrial settings where environmental conditions may vary.
