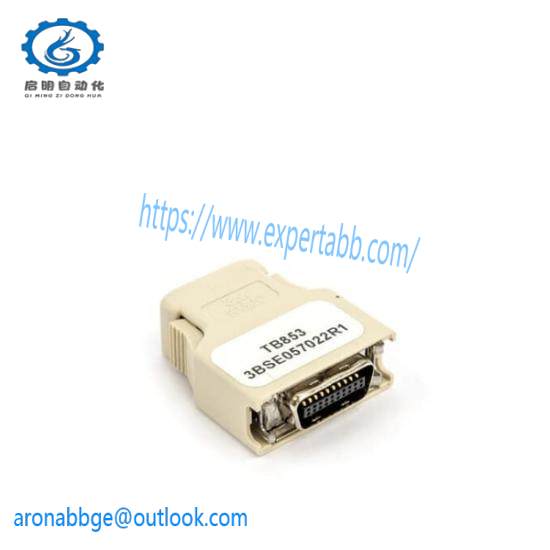

3BSE057022R1 – ABB Module

Operating Voltage:220V

Output Frequency:50kHz

Protocol Compatibility:Supports multiple industrial protocols including Ethernet/IP, Profinet, DeviceNet

Data Rate:Up to 10 Mbps

Power Consumption:Less than 5W

Dimensions:120mm x 80mm x 20mm

Temperature Range:-20°C to +60°C

Humidity:10% to 95% non-condensing

    This ABB RCU Control Link Terminator is engineered for critical applications where reliable signal termination and isolation are paramount. It ensures that data signals are accurately received and transmitted without interference, thereby enhancing system stability and efficiency.

    Crafted from high-grade materials for durability and longevity, this terminator is compatible with various industrial protocols including MODBUS RTU, making it versatile for integration with existing systems.

    Featuring an active termination design, it actively absorbs reflected signals, preventing signal distortion and potential damage to connected devices. This feature is particularly useful in long cable runs or environments with high signal reflections.

    With its compact size and IP20 environmental rating, this terminator can be easily installed in a wide range of industrial settings, from factories to power plants, without compromising on performance or safety.

    Equipped with robust connectors that comply with IEEE 802.3 standards, it ensures stable and secure data transmission, even under harsh conditions. The terminator’s ability to operate within a temperature range of -20°C to +50°C makes it suitable for diverse global applications.
