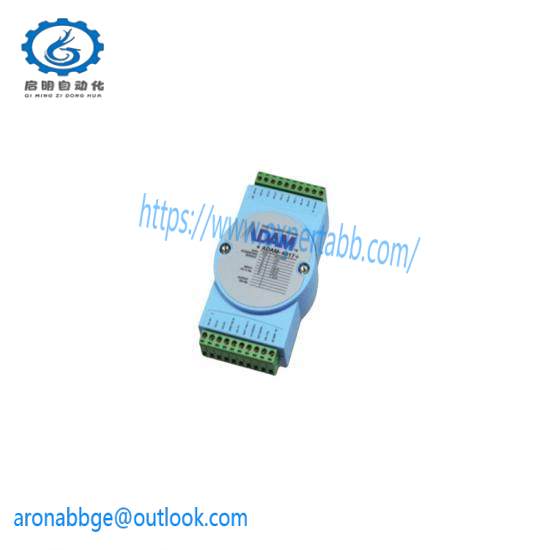

Advantech ADAM-4012 Analog Input Module – Precision & Efficiency for Industrial Control

Operating Temperature:-20°C to +70°C

Data Acquisition Channels:16

Resolution:16-bit

Sampling Rate:1000 samples/sec

Communication Interface:USB 2.0

Power Supply Voltage:9-24V DC

Dimensions:125 x 50 x 25 mm

Weight:40 g

    The ADAM-4012 ANALOG INPUT MODULE is an essential component in industrial automation systems, designed to monitor and process analog signals from various sensors and equipment. Its robust design ensures reliable operation under extreme environmental conditions, making it suitable for applications ranging from factory automation to process control in harsh industrial environments.

    With a wide input range from -10V to +10V or 0V to 10V, the ADAM-4012 can accurately measure a variety of physical quantities such as temperature, pressure, and flow rates. The module supports both positive and negative voltages, providing flexibility in connecting different types of sensors.

    Featuring 12-bit resolution, the ADAM-4012 delivers precise data acquisition, critical for maintaining high-quality control in industrial processes. Its fast sampling rate of 10 samples per second per channel ensures real-time monitoring and quick response to changes in the process.

    The ADAM-4012 is powered by a wide range of 9 to 36V DC power supplies, ensuring compatibility with various industrial power systems. It operates within a broad temperature range of -20°C to +70°C, allowing it to withstand the rigors of industrial environments.

    Equipped with an IP20 (NEMA 1) enclosure rating, the module is protected against dust and light splashes, further enhancing its durability and reliability in industrial settings. The RS-485 communication interface supports MODBUS RTU protocol, enabling seamless integration with a wide range of industrial control systems.
