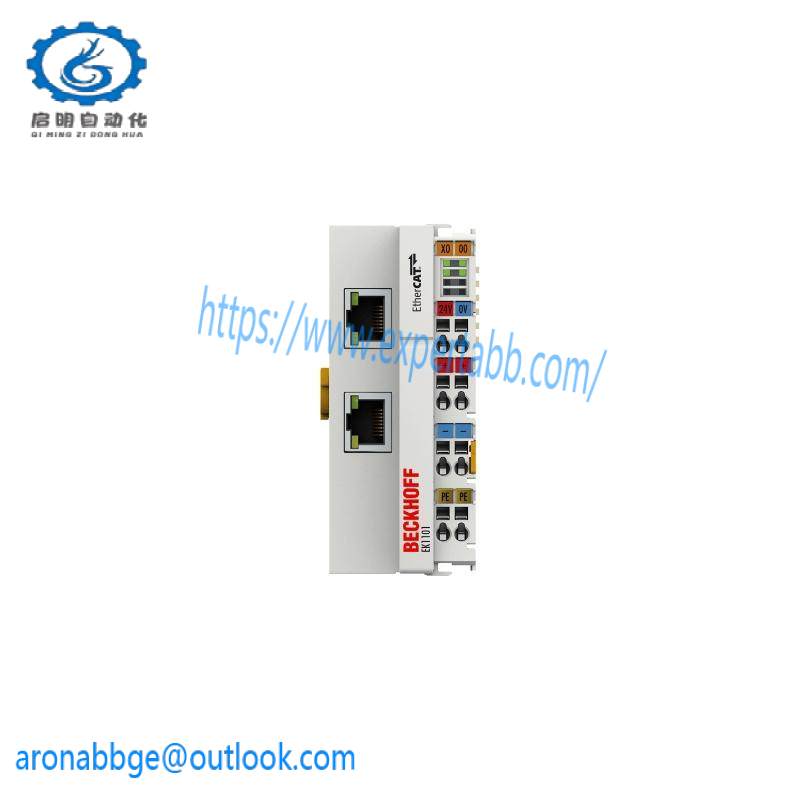

EK1101-0000 – Industrial Module

Ethernet Interface:10/100Base-TX

Coupler Type:EtherCAT

ID Switch Functionality:Automatically identifies and selects the correct node ID

Data Transfer Rate:Up to 100 Mbit/s

Network Connections:RJ45 connector

Power Supply:24 VDC, 30 mA max

Operating Temperature:-20°C to +70°C

Dimensions:75 x 50 x 35 mm

Weight:55 g

    Integrating advanced EtherCAT technology, the Beckhoff EK1101-0000 Coupler is designed to seamlessly connect and manage multiple devices within complex automation environments. This compact solution optimizes system performance by ensuring reliable data transfer at high speeds, crucial for real-time operations.

    Featuring an integrated ID switching capability, our coupler allows for flexible device identification and management, streamlining the setup process and reducing the risk of configuration errors. This feature significantly simplifies network integration and enhances system scalability.

    Built with robust materials and engineered for demanding industrial conditions, the coupler operates efficiently within a wide temperature range, from -20°C to +70°C. Its IP20 compliance ensures protection against dust and light splashes, maintaining reliability in various industrial settings.

    Equipped with a DC power supply range of 12V to 30V, the coupler offers flexibility in installation scenarios, making it suitable for a broad spectrum of applications. This wide voltage compatibility ensures stable operation under varying power conditions, supporting diverse automation needs.

    Incorporating precision engineering and meticulous attention to detail, the Beckhoff EK1101-0000 EtherCAT Coupler with ID switch is a testament to the brand’s commitment to delivering high-quality, efficient solutions for modern industrial automation systems. It is designed to enhance operational efficiency, reduce maintenance requirements, and ultimately contribute to a more sustainable and productive manufacturing environment.
