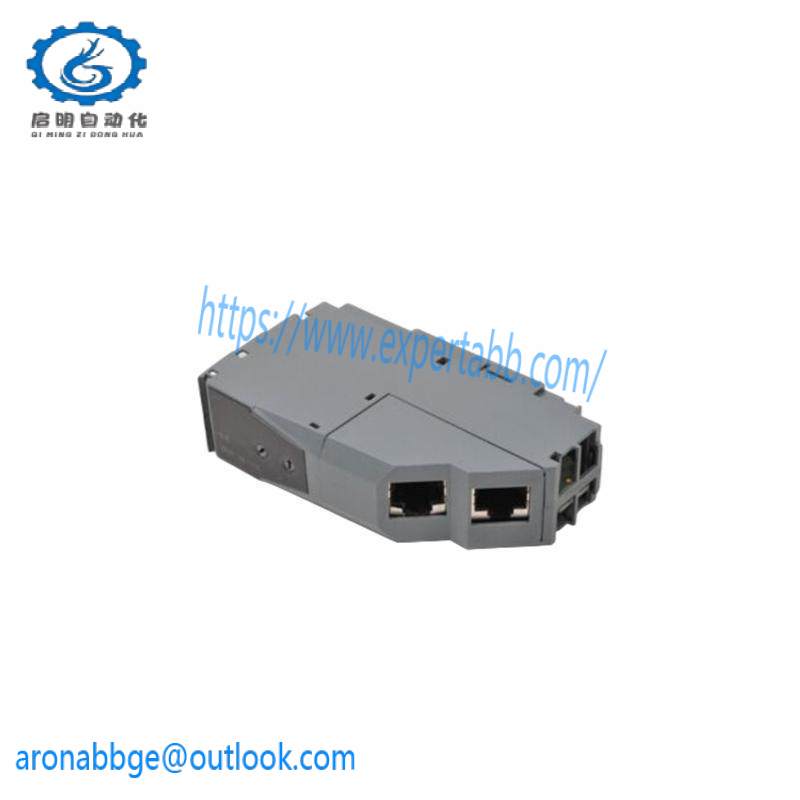

B&R X20BC8084 BUS CONTROLLER – Advanced Industrial Automation Solution

Fieldbus Support:EtherCAT, EtherNet/IP

Integrated Switch Ports:3-port switch for efficient cabling

Auto-Configuration:Automatically configures I/O modules

Web Interface:Accessible via web interface for easy setup

DHCP Capability:Supports Dynamic Host Configuration Protocol

Configurable I/O Cycle:Adjustable cycle times from 0.5 – 4 ms

Minimum Fieldbus Cycle Time:1 ms for optimal performance

Power Consumption:Bus: 2 W

Maximum Cable Length:Up to 100 m between 2 stations

Transfer Rate:10/100 Mbit/s for reliable data transmission

    The B&R X20BC8084 BUS CONTROLLER offers seamless integration with various fieldbuses, ensuring compatibility across diverse industrial systems.

    Featuring an integrated 3-port switch, it streamlines cabling and network setup, reducing installation time and complexity.

    Auto-configuration of I/O modules allows for quick deployment without the need for extensive manual setup, enhancing productivity.

    Accessible through a web interface, the controller provides an intuitive platform for monitoring and managing operations, facilitating remote access and diagnostics.

    Support for DHCP ensures dynamic and automatic IP addressing, simplifying network configuration and maintenance.

    With configurable I/O cycles tailored to specific application needs, users can optimize performance for enhanced efficiency and response times.

    Able to deliver a minimum fieldbus cycle time of 1 ms, the controller supports high-speed data processing and real-time control in demanding applications.

    Efficient power consumption and long cable length capacity make it suitable for a wide range of industrial settings, from small to large-scale operations.
