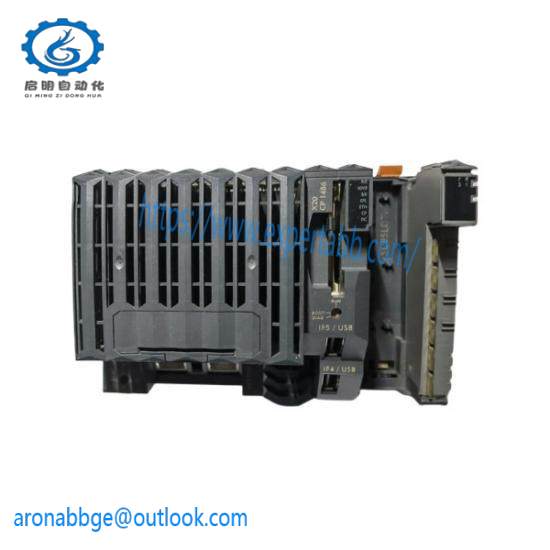

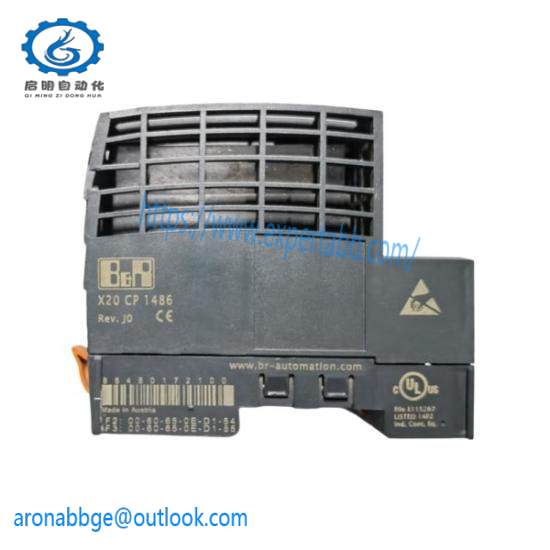

B&R X20CP1486 Central Processing Unit – Advanced Control Solution

Brand:B&R

Model:X20CP1486

Operating Voltage:220V

Output Frequency:30kHz

Series:X20CP1486

Certification:CE, C Tick, UL, cUL, Class SIL3/PLe

Interfaces:[{“Interface”:”1x RS232″,”Type”:”Serial Communication”},{“Interface”:”1x Ethernet”,”Type”:”Network”},{“Interface”:”1x POWERLINK (V1/V2)”,”Type”:”Fieldbus”},{“Interface”:”2x USB”,”Type”:”USB 1.1/2.0″},{“Interface”:”1x X2X Link”,”Type”:”Advanced Interface”}]

Power Consumption:Internal I/O: 0.6W

Input Voltage:24VDC -15% / +20%

Input Current:Max. 2.2A

Processor Type:Intel x86-based, 100 MHz-compatible CPU

RAM:32MB SDRAM

Fanless Design:Efficient heat dissipation without moving parts

CompactFlash Memory:Removable for application storage

System Modules:CPU, Ethernet, POWERLINK, USB, X2X Link

    The B&R X20CP1486 Central Processing Unit is a cutting-edge solution for advanced industrial automation tasks, featuring a robust Intel x86-based, 100 MHz-compatible CPU that ensures smooth operation and efficient performance. This unit is equipped with an integrated I/O processor, providing seamless integration with various input/output devices.

    Equipped with onboard Ethernet, POWERLINK, and USB interfaces, the X20CP1486 offers versatile connectivity options that cater to diverse automation needs. The compact design with a fanless specification ensures silent operation and reduced maintenance requirements.

    The unit supports a universal feedback interface capable of supporting up to 14 different encoder types, enhancing its compatibility with a wide range of motion control systems. Its high-resolution analog capabilities further improve precision in critical applications.

    With support for a compact Flash memory as the application storage medium, the X20CP1486 ensures secure and reliable data management. The presence of system status indicators for CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, and battery provides real-time monitoring, enabling proactive maintenance and minimizing downtime.

    Designed for durability and reliability, the B&R X20CP1486 Central Processing Unit is engineered to withstand challenging industrial environments. It complies with safety standards like CE, C Tick, UL, and cUL, ensuring a safe and efficient operation across multiple sectors.
