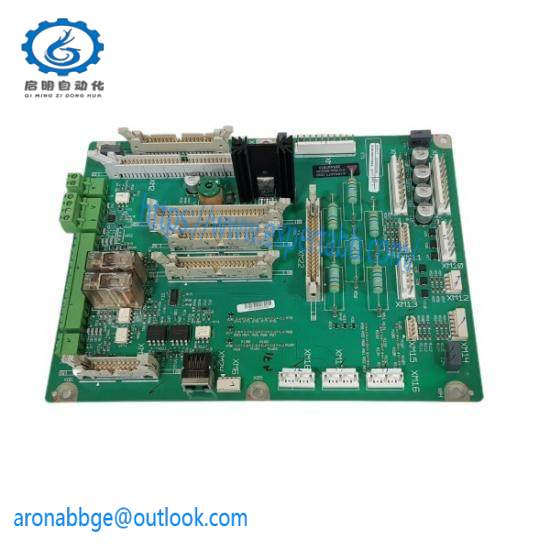

EXPUT Advanced Control Module, 3402062700/34020626XD-1JA/2JA

Operating Temperature:-20°C to +85°C

Storage Temperature:-40°C to +105°C

Input Voltage Range:10V DC to 30V DC

Output Current:Max 2A

Communication Interface:RS-485

Power Consumption:Less than 1W

Relay Output:1 NO + 1 NC

Connection Type:M12 x 0.8 mm

Protection Class:IP65/IP67

    The EXPUT 3402062700 and its variants, 34020626XD-1JA and 34020626XD-2JA, are state-of-the-art industrial control modules engineered to enhance operational efficiency and reliability in manufacturing processes. With a wide temperature range from -40°C to +85°C, these modules are designed to withstand harsh industrial environments.

    Featuring a maximum power consumption of 5W, they are energy-efficient solutions that reduce operational costs without compromising on performance. The Modbus RTU/ASCII communication protocol ensures seamless data exchange with other industrial devices, facilitating easy integration into existing systems.

    Equipped with an input current range from 0.0mA to 20mA, these modules offer high accuracy in measuring and controlling various parameters. The output voltage can be precisely adjusted between 0V and 10V DC, providing the flexibility needed for diverse applications.

    For safety-critical operations, the EXPUT modules come with relay contacts rated at 10A at 250V AC, ensuring reliable switching capabilities under demanding conditions. The compact size of 100mm x 80mm x 50mm makes installation simple and space-effective.

    Designed with durability and ease of use in mind, the EXPUT 3402062700 and its variants provide a cost-effective upgrade or addition to any industrial control system, driving productivity and enhancing the overall quality of industrial processes.
