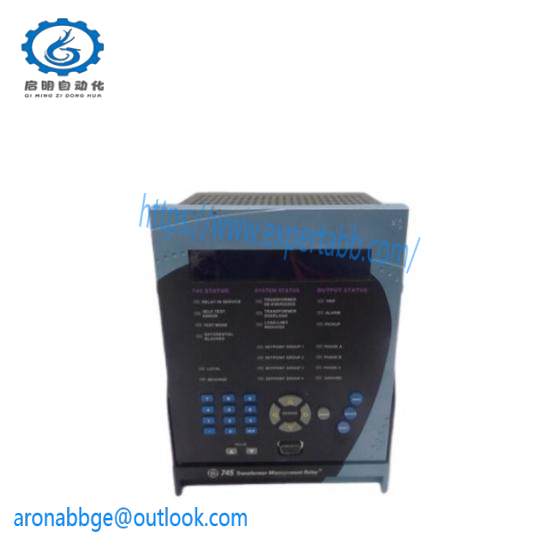

GE 745-W2-P15-G5-HI-A-L-R-E-H New – Comprehensive Transformer Protection Module

Operating Temperature:-40°C to +60°C

Manual:745 Instruction Manual 1601-0161-A7

Frequency:50 or 60 Hz nominal

Software Version:EnerVista 745

Windings Per Phase:2

Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

    Crafted with precision, the General Electric 745-W2-P15-G5-HI-A-L-R-E-H is designed to offer unparalleled performance in managing and safeguarding electrical systems. Its advanced features include real-time event response and adaptive functionalities, ensuring reliable operation and extended system life.

    The relay boasts a compact yet robust design, equipped with a high-definition 40-character LCD display for clear status readings and intuitive operation. Its ergonomic layout allows for easy manual adjustment and monitoring, enhancing user experience and operational efficiency.

    Equipped with 16 logic inputs, this device seamlessly integrates with various control systems, providing versatile application options for different industrial environments. Its capability to function both as a standalone unit or in conjunction with other relays within the General Electric Multilin 745 series further amplifies its utility and adaptability.

    The GE 745-W2-P15-G5-HI-A-L-R-E-H comes with enhanced display technology and a wider keypad for effortless manual entry of critical parameters. This feature ensures precise control over system settings, facilitating quick adjustments in response to changing conditions.

    Comprehensive safety features, including dynamic current transformation ratio correction, overexcitation protection, transformer overload detection, and frequency rate-of-change detection, are integrated into the device. These features work together to monitor and mitigate potential hazards, safeguarding electrical assets from damage and prolonging their operational lifespan.
