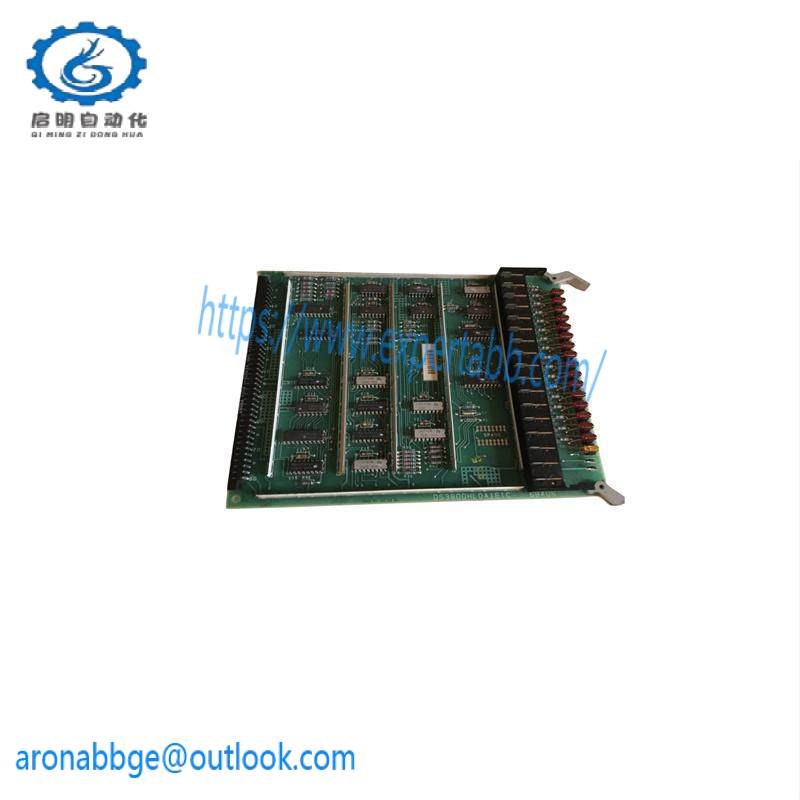

DS3800HCVA1G – GE Board

Model Number:DS3800HCVA1G

Module Type:Drive Interface

Board Size:Standard Size

Connector Type:Modular

Indicator LEDs:2 Amber

Jumpers:14

Trimmer Resistors:4

DC to DC Voltage Regulators:2

Front Accessible Connectors:3

Weight (Approx.):0.15 kg

Dimensions (LxWxH):10x6x6.7 cm

    Engineered for durability and reliability, the GE DS3800HCVA1G Circuit Board is a critical interface that bridges digital signals to analog outputs, facilitating precise control over industrial machinery.

    Featuring a modular connector design for easy attachment to various drive systems, this board ensures a secure and robust connection, enabling seamless operation in challenging environments.

    Populated with 14 jumpers and equipped with 2 amber indicator LEDs, the DS3800HCVA1G offers real-time feedback on system status, allowing for quick diagnostics and maintenance.

    Accessible from the front of the board are 3 connectors, providing convenient access for external devices and systems, enhancing the flexibility and adaptability of your control solutions.

    The inclusion of 4 trimmer resistors allows for fine-tuning of output signals, ensuring optimal performance across a wide range of applications.

    This circuit board is also equipped with 2 DC to DC voltage regulators, designed to handle high currents efficiently, ensuring stable power supply even under demanding conditions.
