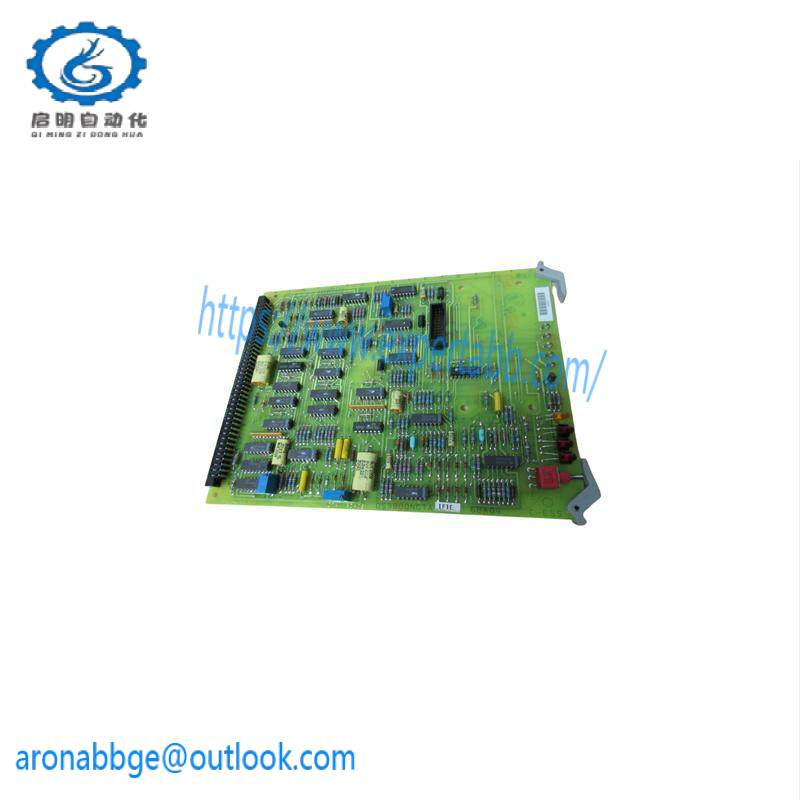

DS3800NPPB1M1J – GE Board

Brand:General Electric

Model:DS3800NPPB

Type:Circuit Board

Series:Mark IV

Function:Turbine Control

Material:High-grade FR4 epoxy resin

Inductors:3 large, paired and unpaired

Capacitors:3 green, vertically arranged

Fuses:2 located on the side

Dimensions:L x W x H (mm): 150 x 100 x 25

Weight:0.3 kg

Operating Temperature Range:-40°C to +70°C

    Engineered with precision for the Speedtronic Mark IV system, the GE DS3800NPPB Circuit Board is an indispensable piece in the automation of gas and steam turbines. Its robust design ensures reliability and efficiency in high-pressure environments.

    Featuring a blend of high-grade materials, including FR4 epoxy resin for the board and carefully selected capacitors and inductors, this circuit board is built to withstand extreme conditions without compromising performance.

    The strategic placement of components such as the paired inductors and the green capacitors in a vertical row optimizes power distribution and signal integrity, crucial for maintaining turbine operation under varying conditions.

    With its compact size and lightweight construction, the DS3800NPPB is easily integrated into existing systems without requiring extensive modifications. Its temperature range compatibility (-40°C to +70°C) ensures operational flexibility across diverse geographical locations.

    This circuit board is not just a piece of technology; it’s a testament to General Electric’s commitment to innovation and reliability in industrial automation. Its compatibility with the Mark IV system guarantees seamless integration and enhanced operational efficiency for gas and steam turbine installations.
