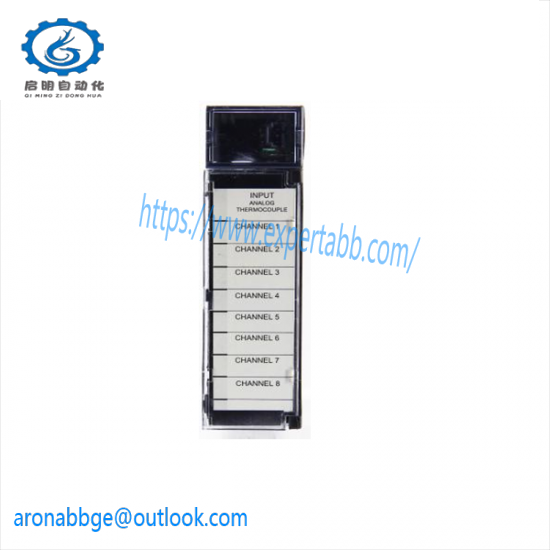

GE FANUC HE693THM809C – Thermocouple Input Module

Operating Temperature Range:-40°C to +85°C

Input Type:Thermocouple (Type J, K, T, E, R, S, B)

Signal Output:Voltage or Current (0-5V, 0-10V, 4-20mA)

Power Supply:DC 24V

Max Input Resistance:1KΩ

Accuracy:+/- 0.5% of reading + 2LSB

Dimensions:74.6mm x 44.4mm x 19mm

Weight:0.15kg

Connection:DB9 connector

Communication Interface:RS-485

Operating Humidity:0% to 95% non-condensing

    Engineered with precision and robustness, the GE FANUC HE693THM809C Thermocouple Input Module ensures accurate temperature readings across a wide range of industrial environments. It is specifically designed for seamless integration into control systems that require real-time temperature monitoring and adjustment.

    Featuring a versatile thermocouple compatibility, this module supports multiple thermocouple types, providing flexibility in diverse applications from manufacturing processes to environmental control systems. The module’s signal output is customizable, allowing users to choose between 0-10VDC or 4-20mA outputs based on their specific system requirements.

    With an operating temperature range from -200°C to +1600°C, this module can withstand extreme conditions commonly found in industrial settings. Its low power consumption ensures efficient energy use, reducing operational costs while maintaining high performance.

    Designed with durability in mind, the HE693THM809C is rated IP65, offering protection against dust ingress and splash water from all directions. This makes it suitable for outdoor and harsh indoor environments without compromising its functionality.

    For users seeking advanced temperature sensing solutions, this module provides unparalleled accuracy and reliability, backed by GE FANUC’s commitment to quality and customer support. Whether you’re upgrading existing systems or building new ones, the GE FANUC HE693THM809C Thermocouple Input Module is the trusted choice for critical industrial applications.
