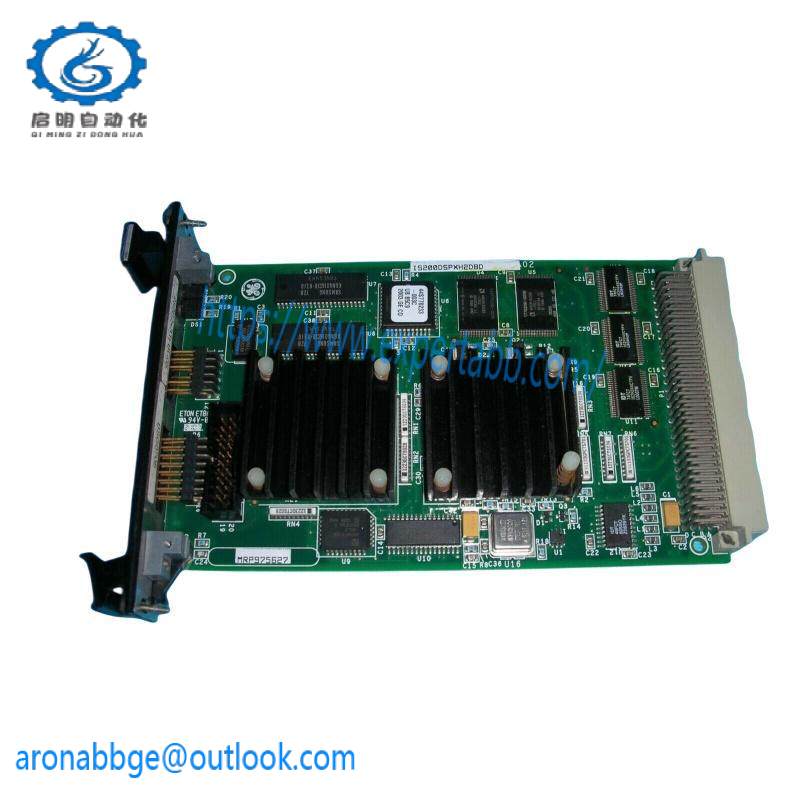

GE IS200DSPXH2DBD: Advanced Digital Signal Processing Control Board

Backplane Input Quantity:6

Board Description:Digital Signal Processor Control Board

Board Use Mode:Controller for Motor and Bridge Regulation

Functional Acronym/Abbreviation:DSPX

I/O Connector Quantity:3

LEDs:2, Status and Fault

Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters

Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus

    Unleash unparalleled control and precision with the General Electric IS200DSPXH2DBD, a state-of-the-art digital signal processor control board tailored for the EX2100e system. Designed for high-performance applications, this board excels in motor and bridge regulation, ensuring optimal efficiency and reliability.

    Equipped with an array of advanced features, the IS200DSPXH2DBD offers a robust 6-input backplane design, making it highly versatile for integration into complex industrial systems. Its digital signal processing capabilities are second to none, providing unparalleled accuracy in control and regulation tasks.

    Featuring a comprehensive set of onboard firmware including application code, boot loader, and configuration parameters, the IS200DSPXH2DBD ensures seamless operation and adaptability to diverse control scenarios. The inclusion of status and fault indicators through 2 LEDs provides real-time monitoring, enhancing system diagnostics and maintenance processes.

    For communication needs, the IS200DSPXH2DBD supports asynchronous TTLs and a high-speed ISBus interface, facilitating smooth data exchange and synchronization with other system components. This board’s compatibility with these interfaces ensures seamless integration into the broader automation landscape.

    Engineered for durability and reliability, the IS200DSPXH2DBD is built to withstand the rigorous demands of industrial environments. Its compact yet robust design ensures minimal interference with system operations, maximizing uptime and productivity.
