GE IS200TREGH1B - High-Performance Termination Board for Mark VI Systems

GE IS200TREGH1B – High-Performance Termination Board for Mark VI Systems

In stock

The GE IS200TREGH1B is a critical component in the Mark VI Series, designed for advanced steam and gas turbine control systems. It ensures seamless operation and safety through its robust design and precise functionality.

Model:IS200TREGH1B

Manufacturer:General Electric

Series:Mark VI

Application:Steam and Gas Turbine Control

Component Type:Termination Board

Dimensions (WxHxD):178mm x 115mm x 35mm

Power Supply Voltage:AC 24V

Operating Temperature Range:-20°C to +60°C

Material:Ruggedized PC Board

Connector Count:Multiple

Mounting Style:Panel Mount

The IS200TREGH1B is meticulously engineered for high-performance operation in steam and gas turbine control systems, ensuring seamless integration and reliability in demanding industrial environments.

Featuring a series of square-shaped transformers encapsulated in transparent plastic with silver wire covers, this termination board provides clear identification of its components, enhancing system traceability and maintenance efficiency.

Sitting atop the board are three black variable resistors or potentiometers, designed for precise control and adjustment, essential for optimizing turbine performance.

Along the right border, you’ll find a set of three jack connector ports, facilitating secure connections and ensuring data integrity across the system.

Four large capacitors, distinctly yellow in color, are strategically placed to provide stable power supply and filtering, crucial for maintaining operational stability under varying conditions.

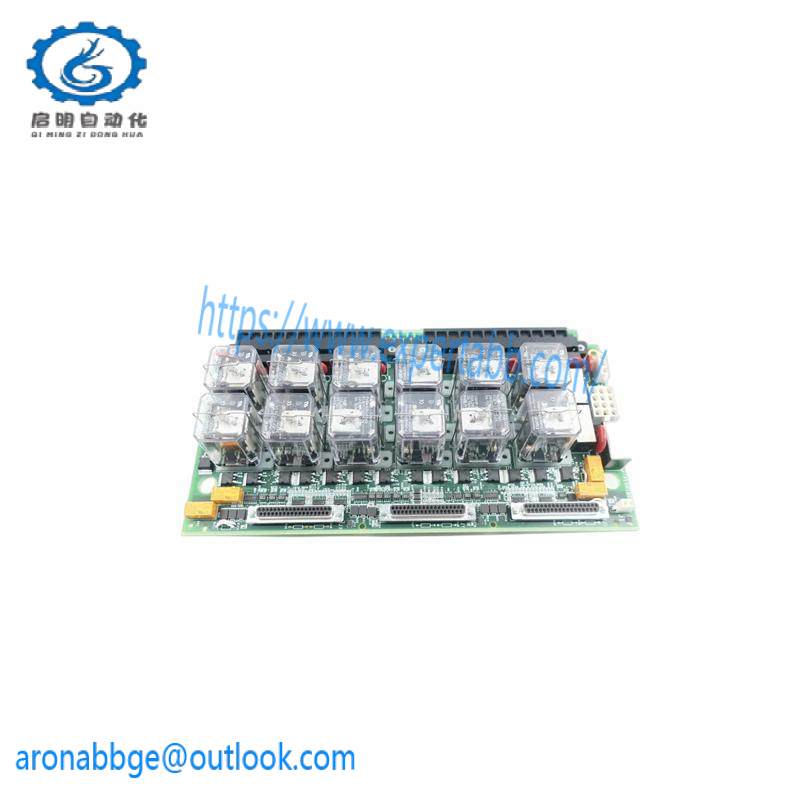

GE IS200TREGH1B TERMINATION BOARD
